| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Application:: | Floor Support Metal Deck | Forming Stations:: | 23 Steps |
|---|---|---|---|
| Suitable Material:: | Galvanized Steel, GI | Forming Speed:: | 10-15m/min |
| Dimension(L*W*H):: | 8mx0.88mx1m | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Material Thickness:: | 0.5-1.2mm | Effective Width:: | 1250 |
| Shaft Diameter:: | 75mm And 95mm | Driving Motor:: | 15Kw |
| Highlight: | 15Kw Floor Decking Roll Forming Machine,GI Floor Decking Roll Forming Machine,15Kw floor deck roll forming machine |
||

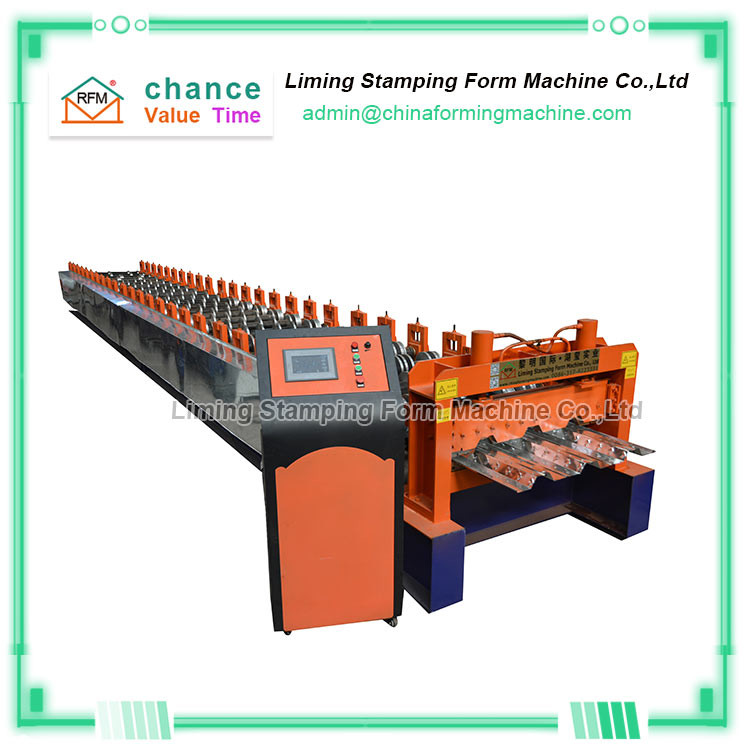

Galvanized Steel Composite Floor Deck Roll Forming Machine
"Galvanized steel composite floor deck roll forming machine" is widely used in some industrially developed countries. It is not only widely used in industrial and civil buildings, but also extended to vehicles, ships, dashboards and shells, and civil electrical appliances.
The general model of "galvanized steel composite floor deck roll forming machine" is 688,750,720.
"Galvanized steel composite floor deck roll forming machine" has the advantages of light weight, high strength, large bearing capacity, beautiful appearance, no joints, good impact resistance, and convenient installation.
"Galvanized steel composite floor deck roll forming machine" has been widely used in power plants, power equipment companies, automobile exhibition halls, steel structure factories, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, large theaters , Large supermarkets, logistics centers, Olympic venues, stadiums and many other steel structure buildings.
Main parameters of Galvanized Steel Composite Floor Deck Roll Forming Machine
| No. | Item | Specification | |
| 1 | Steel coil | Width | According the profile |
| Material | PPGI/GI/AL-ZINC | ||
| Thickness | 0.7-1.5mm | ||
| 0.5-1.0mm | |||
| 1-1.2mm | |||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 450mm Height |
| Stations | Main: 22-30 stations(As profile drawing) | ||
| Rollers | High grade No 45# steel with | ||
| hard 0.05mm chromed | |||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft | As design of drawing | ||
| Main: 90mm | |||
| Chain | Main: 2inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 2*18.5kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic cutting | ||
| Hydraulic pump | Main: 3-5.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 5 Tons |
| 6 | Product | Receiving table | Manual |
