3.2T Gutter Roll Forming Machine , Aluminium Rain Gutter Making Machine

Basic Information
Place of Origin: Hebei China
Brand Name: LIMING
Certification: CE、ISO、BV
Model Number: LM-gutter10
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude、Anti-dust film, Anti-rust cloth
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60set/Year
Detail Information
Operation:: Touch Screen And Button Roll Stations:: 13 Rows
Suitable Material:: PPGI Production Capacity:: 7-12M/Min
Main Frame:: H450 Voltage:: 380V.50HZ.3Phase
Rolling Thinckness:: 0.3-1mm Feeding Width:: 310mm
Weight:: About 3.2T Warranty:: 2 Years
Highlight:

Aluminium Rain Gutter Making Machine

,

3.2T Gutter Roll Forming Machine

,

3.2T Rain Gutter Making Machine


Product Description

Aluminium Rain Gutter Profile Making Machine



"Aluminium rain gutter profile making machine " is fully automatic computer control. Workers only need to input the number of meters of paper in the computer controller, and they can input multiple sets of data at the same time. One-key start, the machine will automatically generate. After reaching the set number of meters, the system controls automatic cutting.



The cutting part of the "aluminium rain gutter profile making machine " is neat, the production measurement is accurate, and the error is small.



In recent years, with the continuous upgrading of the intelligent industry, the development of multi-span greenhouses has been promoted. As drainage profiles, sinks are important raw materials for multi-span greenhouses. The "aluminium rain gutter profile making machine " newly developed by our company is formed at one time, which reduces the cost.



"Aluminium rain gutter profile making machine " plate standard replaces the cumbersome processing methods of old-fashioned shears and bending machines



The "aluminium rain gutter profile making machine " can be formed, punched and cut at one time, which improves production efficiency, reduces labor costs, and reduces the risk of raw material waste.



Main parameters of Aluminium Rain Gutter Profile Making Machine



steel roofing metal water gutter roll forming making machine
Suitable raw material PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet 0.3-0.6mm
Feeding Coil width 430mm
Effective width 203.2mm
Under frame 400H-beam
Diameter of Soild shaft 70mm, high grade 45# steel,with keyway
Roller 45# steel hard chrome coated 0.05-0.07mm
Thickness of middle plate 18mm
Forming stations 16
Drive type By chain(1.0 inch) link bearing model 6210
Power of main motor 3kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station 3kw, Lichao, Shanghai
Forming speed About 15-20m/min
Hydraulic cutting Controlled by PLC
PLC DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade Cr12Mov, quenching 58-62℃

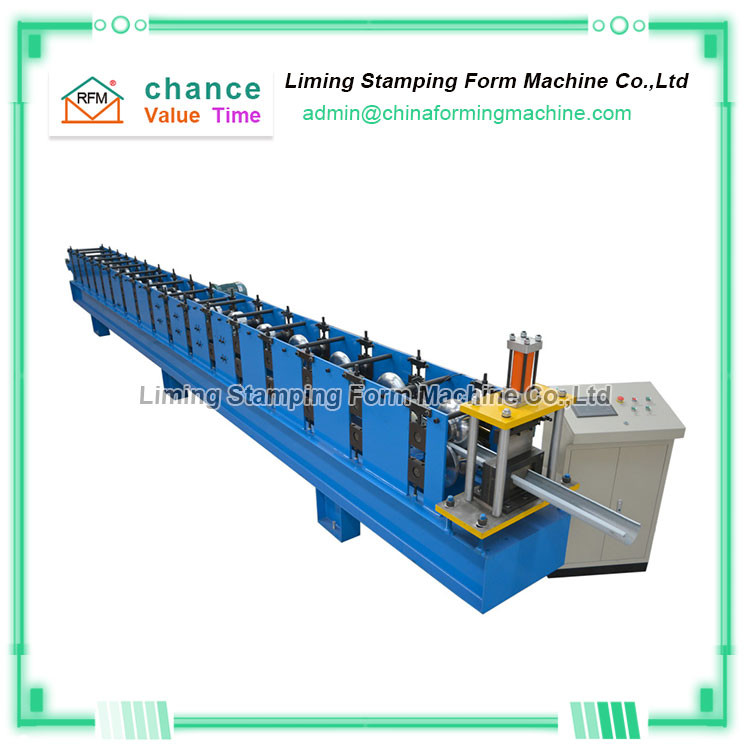

3.2T Gutter Roll Forming Machine , Aluminium Rain Gutter Making Machine 0

3.2T Gutter Roll Forming Machine , Aluminium Rain Gutter Making Machine 1
