| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-gutter13 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Shaft Material:: | GCR15 | Roll Stations:: | 13 Rows |
|---|---|---|---|
| Suitable Material:: | PPGI | Production Capacity:: | 15-20m/min |
| Production Experience:: | 25 Years | Roller Material:: | 45# Steel |
| Rolling Thinckness:: | 0.3-1mm | Dimension(L*W*H):: | (L*W*H)10*1*1.2M |
| PLC Brand:: | Delta | Warranty:: | 2 Years |
| Highlight: | Steel Gutter Roll Forming Machine,10x1x1.2M Gutter Roll Forming Machine |
||

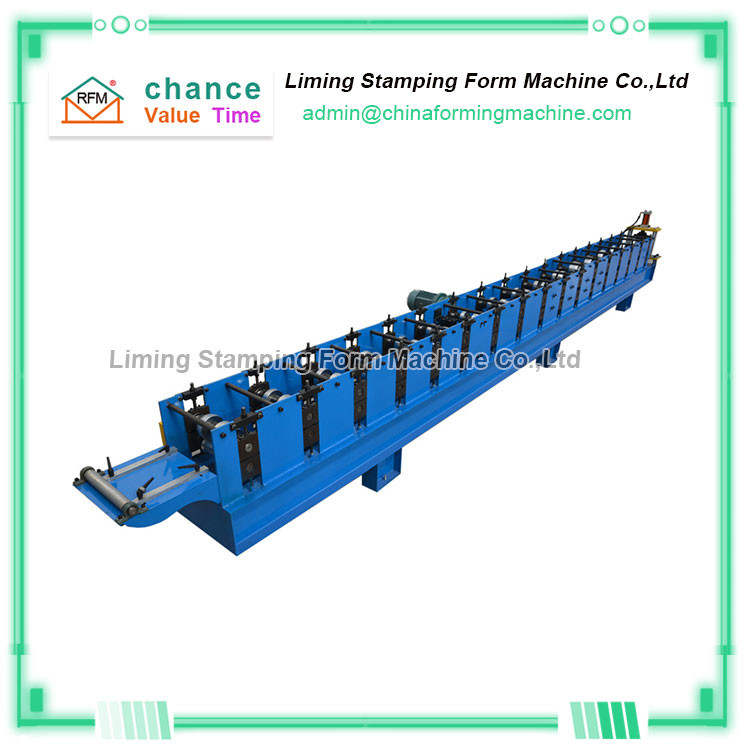

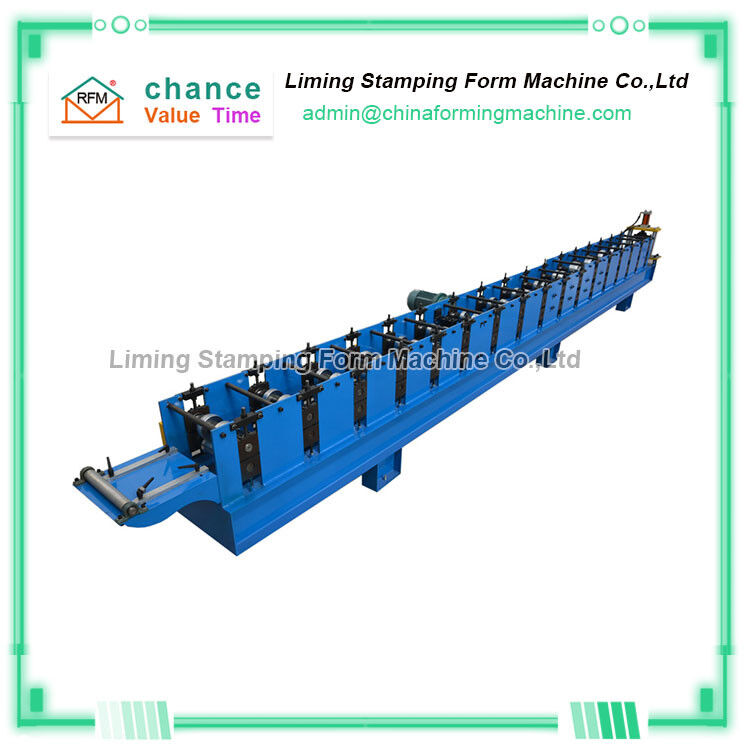

Customized Gutter Shape Steel Roll Forming Machine
The groove produced by the "Customized Gutter shape steel roll forming Machine " refers to the concave part between the two parts of the building roof.
Roof drainage is divided into organized drainage and unorganized drainage (free drainage). Organized drainage usually collects rainwater into drains and drains it from rainwater pipes. The drains that collect rainwater are called drains.
The "customized Gutter shape steel roll forming Machine " can ensure that it will not be oxidized, and it can also ensure that it can still be protected in severe cold and high temperature weather.
The "Customized Gutter shape steel roll forming Machine " can be recycled and meets the national green building requirements.
"Customized Gutter shape steel roll forming Machine " can produce K-shaped grooves or semi-circular grooves. We can design the gutter roll forming machine according to your drawings (outline drawings provided by customers, or suggestions for you).
Main parameters of Customized Gutter Shape Steel Roll Forming Machine
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 200-600mm |
| 3 | Rollers | 14-16rows |
| 4 | Dimensions | 8.6*0.8*1.2m |
| 5 | Power | 4+3kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 8-12m/min |
| 8 | Diameter of the roller | 52mm |
| 9 | Weight | About 4.5 T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Rolling material | Carbon Steel 45# |
| 12 | Material of the cutting plate | Cr12 |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.6 T |
