| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Carriage 10.29 3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Voltage: | 380v 3ph 50hz | Warranty: | 1.5 Years |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Place Of Origin: | Hebei, China |
| Dimension(L*W*H): | 11.6*1.6*1.5m | Certification: | CE、BV、ISO |
| Rolling Thinckness: | 0.3-1.0mm | Motor Brand: | Shanghai Lichao |
| Cutter Material: | Cr12/Cr12 Mov | ||
| Highlight: | car body sheet rollformers,380v sheet forming machine,independent electronically controlled sheet forming machine |
||

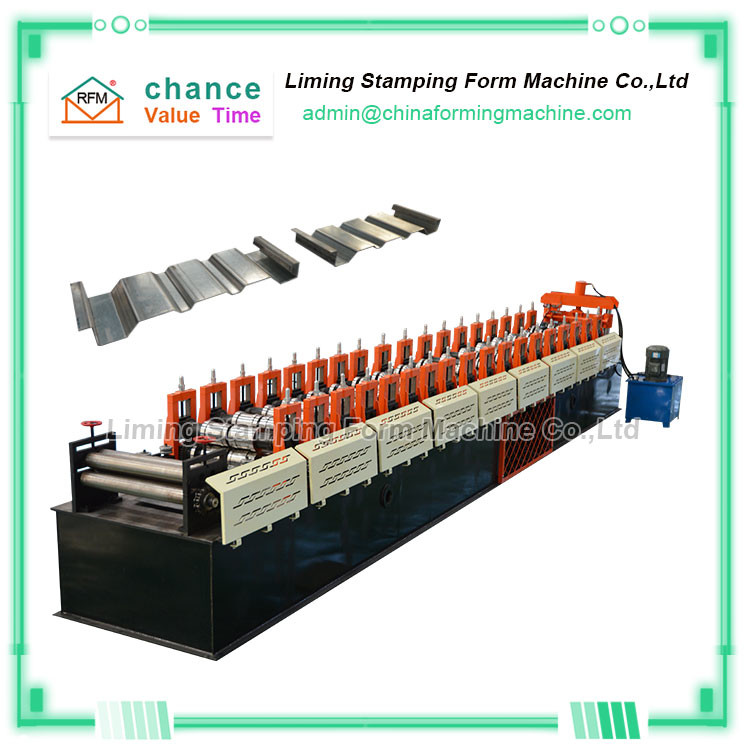

380V Independent Electronically Controlled Car Body Sheet Forming Machine
What is a car body plate forming machine?
The car body plate forming machine is an equipment used to produce car body plates
The car body plate forming machine is composed of an uncoiling device, a feeding device, a forming host, a shearing device, a hydraulic device, and a receiving device. The whole machine is controlled by a PLC computer programming system, which can help you save a lot of manpower.
Technical parameters of 380V Independent Electronically Controlled Car Body Sheet Forming Machine
|
1
|
Suitable to process
|
Color steel plate
|
|
|
2
|
Width of the plate
|
1220mm
|
|
|
3
|
Rollers
|
14-18rows
|
|
|
4
|
Dimensions
|
11.6*1.6*1.5m
|
|
|
5
|
Power
|
7.5+4kw
|
|
|
6
|
Thickness of the plate
|
0.3-1.0mm
|
|
|
7
|
Productivity
|
8-15m/min
|
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
|
9
|
Weight
|
About 6.8 T
|
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
|
11
|
Rolling material
|
Carbon Steel 45#
|
|
|
12
|
Material of the cutting plate
|
Cr12
|
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
|
14
|
Control system
|
PLC control
|
|
|
15
|
Side panel of machine
|
14mm
|
|
|
16
|
Main structure of the machine
|
300 H steel
|
|
The middle plate of the car body plate forming machine adopts a 20mm thick middle plate and the bottom of the main machine, which ensures the stability of the car body plate forming machine and also ensures the load-bearing capacity of the car body plate forming machine, which can help you safely and quickly Production.
The car body plate forming machine is equipped with Omron's encoder, which ensures that each shaped profile has the correct size, which can help you quickly install it or can be directly used for sale.
The car model plate forming machine is designed and assembled by our team of engineers who have returned from studying in Germany. The whole machine is designed with reasonable design, strong load-bearing capacity and high production efficiency, which can bring you considerable benefits.
If you need to produce carriage plate profiles or need carriage plate forming machines, please call us and we will give you a satisfactory answer.
