| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Carriage 10.29 3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Voltage: | 380v 3ph 50hz | Warranty: | 1.5 Years |
|---|---|---|---|
| Production Capacity: | 8-12m/min | Place Of Origin: | Hebei, China |
| Dimension(L*W*H): | 11*1.5*1.5m | Certification: | CE、BV、ISO |
| Rolling Thinckness: | 1.0-3.0mm | Motor Brand: | Shanghai Lichao |
| Cutter Material: | Cr12/Cr12 Mov | ||
| Highlight: | plc carriage board roll forming machine,liming carriage board roll forming machine,carriage board rollformers machine |
||

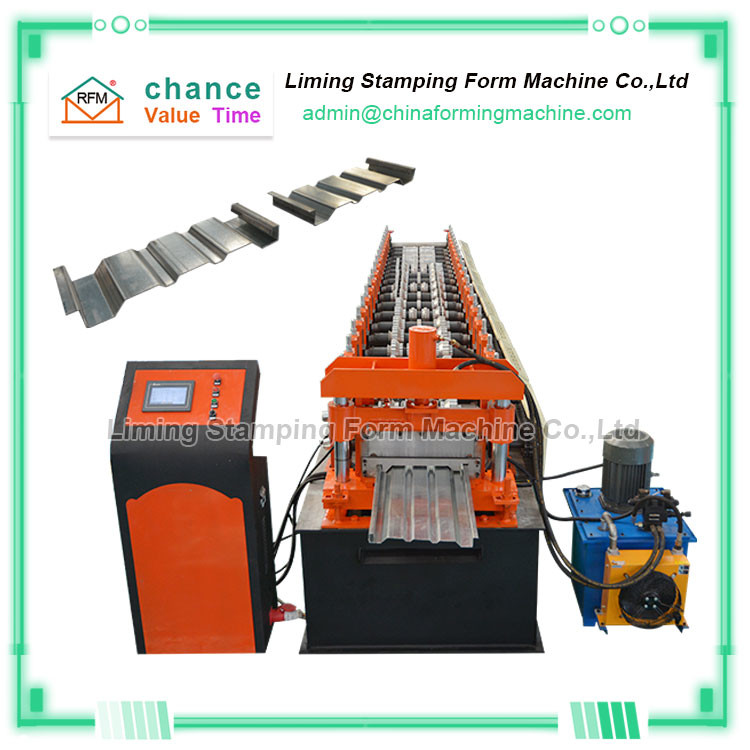

380V/220V optional Auto panel roll forming machine can produce 1-3mm thick products
Liming Company is a company that produces, manufactures, develops, designs, and sells automotive panel roll forming machines and a variety of cold bending equipment. Liming Company has professional cold roll forming technology to ensure that every automotive panel roll forming machine designed Both have high precision and production efficiency. At the same time, we also have perfect after-sales service to provide our customers with 24-hour manual service, to help customers solve all problems about the automotive panel roll forming machine, if you need automotive panel roll forming Machine welcome to inquire.
Technical parameters of 380V/220V optional Auto panel roll forming machine can produce 1-3mm thick products
|
1
|
Suitable to process
|
Color steel plate
|
|
|
2
|
Width of the plate
|
1220mm
|
|
|
3
|
Rollers
|
14-18rows
|
|
|
4
|
Dimensions
|
11*1.5*1.5m
|
|
|
5
|
Power
|
7.5+4kw
|
|
|
6
|
Thickness of the plate
|
1.0-3.0mm
|
|
|
7
|
Productivity
|
8-12m/min
|
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
|
9
|
Weight
|
8 T
|
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
|
11
|
Rolling material
|
Carbon Steel 45#
|
|
|
12
|
Material of the cutting plate
|
Cr12
|
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
|
14
|
Control system
|
PLC control
|
|
|
15
|
Side panel of machine
|
14mm
|
|
|
16
|
Main structure of the machine
|
350 H steel
|
|
Work flow of automobile panel roll forming machine:
Uncoiling-guided feeding-roll forming-cut to length-finished product receiving
Manual scrolling-PLC control parameter filling-automatic entry of plates-automatic cutting of fixed length-the product falls into the receiving table.
Our advantage:
The feeding guide platform of the automobile panel roll forming machine: four-point adjustment makes the entry of raw materials more precise
Auto panel roll forming machine cutting system: die cutting ensures that the product has no capillary, accurate size, and easy to install
The middle plate of the automobile panel roll forming machine: the 20mm thick middle plate and the base are tightly welded to ensure the stable production of the equipment
Automobile panel roll forming electrical control system: adopts Delta PLC control, touch control, and automated production. (Set batch, workpiece length, quantity, etc.).
Automobile panel roll forming machine counter: adopts Omron encoder to ensure the accuracy of the size, without secondary trimming
