| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich13 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Power:: | 3KW-20.5KW | Control Mode:: | PLC |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 5m*1.3m*1.3m-15m*1.3m*1.4m |
| Working Speed:: | 10-14m/min | Material:: | EPS,Pre-printed Steel Coil,galvanized Coil,Aluminum Coil |
| Highlight: | EPS Sandwich Panel Roll Forming Machine,Precast Sandwich Panel Roll Forming Machine |
||

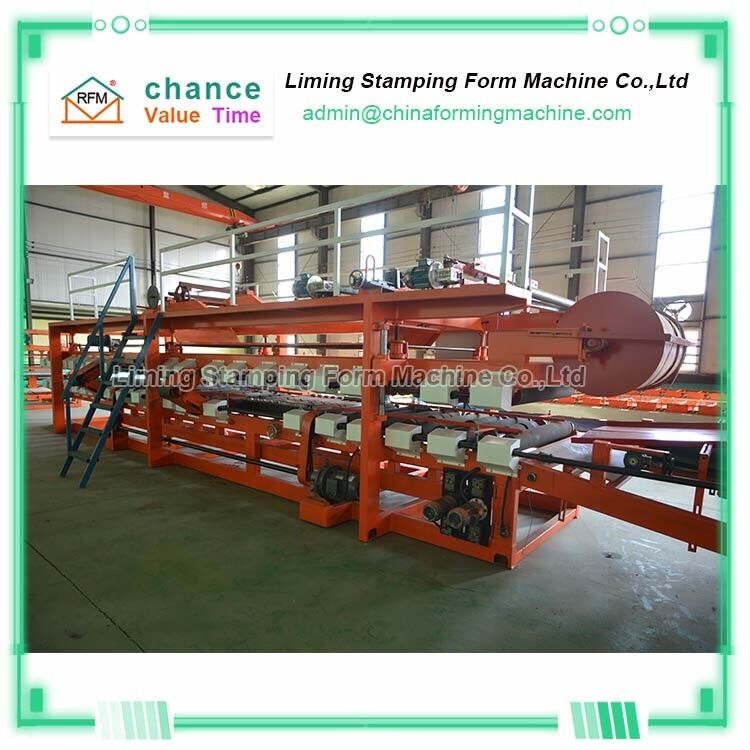

Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine
"Automatic precast EPS sandwich wall panel roll forming machine" can be designed and modified according to the needs of users to meet the needs of different users.
"Automatic precast EPS sandwich wall panel roll forming machine" adopts frequency conversion speed regulation and can automatically cut off according to the preset length of the sandwich panel.
"Automatic precast EPS sandwich wall panel roll forming machine" adopts outsourcing rubber roller horizontal composite material to protect the color steel plate paint surface and the pressure compound of the sandwich panel.
"Automatic precast EPS sandwich wall panel roll forming machine" adopts the outsourcing rubber roller horizontal composite to protect the color steel plate paint surface and the pressure composite of the sandwich panel.
"Automatic precast EPS sandwich wall panel roll forming machine" adopts high-quality thickened rectangular steel welding, and performs rust removal, polishing, planing and aging treatment.
"Automatic precast EPS sandwich wall panel roll forming machine" Applicable core board: releasable polystyrene foam board, rock wool board.
Technical parameters of Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.8mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 7200mmx1600mmx1500mm |
| 8 | Speed | 5-12m/min |
| 9 | Diameter of shaft | 75mm |
| 10 | Weight of the Machine | 4500-5000KGS |
| 11 | Material of rollers | 45# steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 32kw |
| 15 | Power of hydraulic system | 15kw |
| 16 | Power of main molding core | 15kw |
