| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Coil Weight:: | 6.5Ton | Size Of Sheet:: | 1200mm |
| Warranty: | 2 Years | Raw Material:: | PPGI PPGL GI GL |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 30000*3000*2800mm |
| Shaft Material:: | 45# Steel | PLC:: | DETLA |
| Highlight: | foam composite board sandwich panel line,1200mm sandwich panel line,foam composite board sandwich panel machine |
||

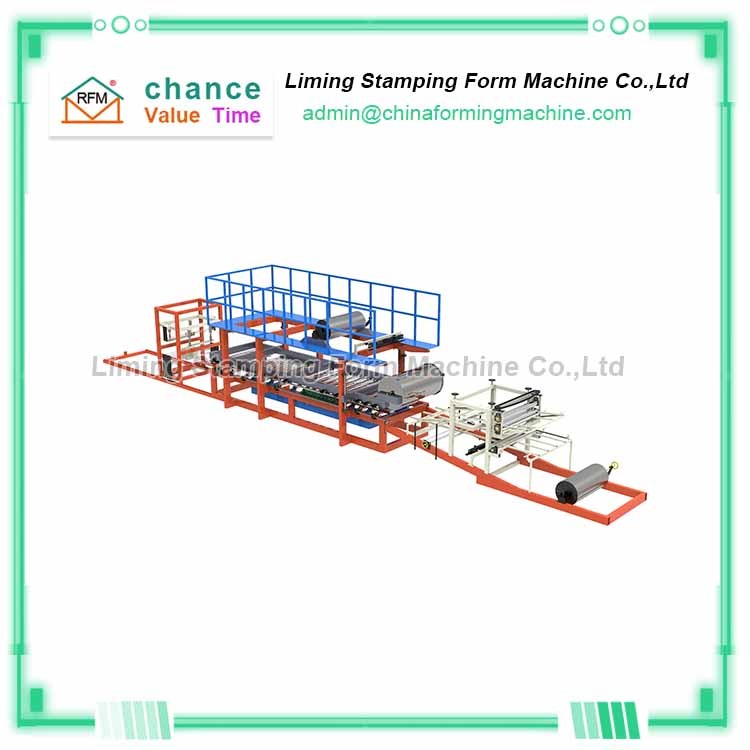

Simple house construction, easy to install foam composite board forming machine
Foam composite board is a new type of building material. The inner and outer layers are weather-resistant colored building steel plates, and the middle is filled with thermal insulation and sound insulation materials such as rock wool, polystyrene, polyurethane and glass wool. It is an irreplaceable equipment for the construction of industrial plants, warehouses and other room panels and simple houses. So if you need to produce foam composite panels, we can provide you with a foam composite panel forming machine.
The foam composite board forming machine adopts a production process integrating gas, electricity and machinery. It is a special mechanical equipment for processing color steel insulation composite board.
The foam composite board forming machine adopts frequency conversion and stepless speed regulation. It can compound into corrugated composite board at one time. The complete assembly line is purchased from the unwinding machine. , Crimping, grooving, edge trimming, pneumatic, automatic cutting), which can help you save a lot of labor costs.
At the same time, the products produced by the foam composite board forming machine are easy to install, strong in load-bearing capacity, and good in insulation effect, which can help you quickly occupy the market and win market competitiveness.
Technical parameters of Simple house construction, easy to install foam composite board forming machine
| Manufacturer Price Sandwich Panel Foam Making Machine Production Line | |
| Length | Min cut length: 3 m |
| Max stacker length: 15 m | |
| raw material standards | |
| Coil thickness | 0.4~0.6mm (the coil surface should be flat, |
| no arch and the others surface trouble.) | |
| Material coil yield strength | 235MPa |
| Material coil max width | see detailed profile drawings. |
| Material coil max weight | 5 T |
| Material coil inner diameter | Φ508,Φ610 mm |
| EPS core material | |
| density | ≥18Kg/m3 |
| straight rate | ≤1mm/m |
| arch degree | ≤3mm/m |
| panel surface | shoule be flat |
| no flat degree is ≤1.5mm/m, | |
| sandwich panel length | longer than 5 meters |
| wool material | |
| fiber length | ≥100mm |
| cubage density | ≥100Kg/m3 |
| sandwich panel length | ≥3 meters |
