| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Total Power:: | 30kw | Chain Size:: | 20mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 30000*3000*2800mm |
| Working Speed:: | 10-14m/min | Backboard Thickness Of Plate Former:: | 20mm |
| Highlight: | W1200mm Sandwich Panel Production Line,30kw Sandwich Panel Production Line |
||

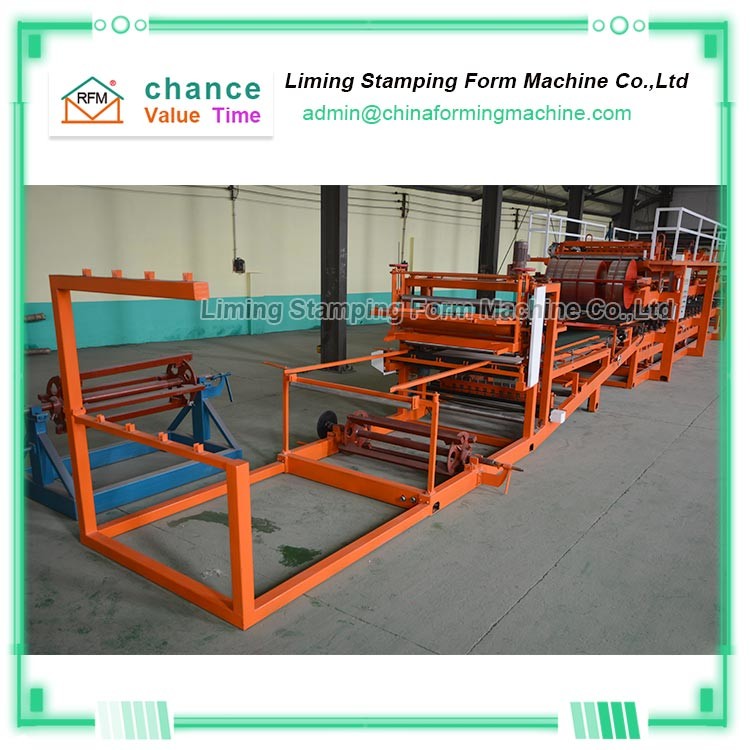

High Precision Sandwich Roof And Wall Sheet Panel Roll Forming Machine Production Line
"High precision sandwich roof and wall sheet panel roll forming machine production line " refers to the mechanical equipment that can produce color steel composite panels, which is what we usually call sandwich panel equipment. It is divided into two types: foam sandwich board machine and rock wool sandwich board machine.
"High precision sandwich roof and wall sheet panel roll forming machine production line " is a special production equipment for new building materials. Its main function is to compound colored steel on the thicker and lighter core material EPS board or rock wool board.
The"High precision sandwich roof and wall sheet panel roll forming machine production line " can accurately cut sandwich panels under continuous operating conditions, thereby realizing the mechanization and automation of the entire production process.
"High precision sandwich roof and wall sheet panel roll forming machine production line " uses color steel plate as surface material, self-extinguishing polystyrene, polyurethane, glass wool, rock wool as core materials, and uses thermosetting glue in the continuous forming machine. An ultra-light building board made of internal heating and pressure.
Technical parameters of High Precision Sandwich Roof And Wall Sheet Panel Roll Forming Machine Production Line
| No. | main parameter of roll forming machine | |
| 1 | suitable material | Color Steel plate, galvanized |
| sheet | ||
| 2 | Width of the plate | 1200mm |
| effective surface | 950/960/970/980mm | |
| 3 | Rows of rollers | 14 rows |
| 4 | Size | 7.5*1.3*1.2m |
| 5 | Total power | 4kw |
| 6 | Thickness of raw material | 0.3-0.8mm |
| 7 | Productivity | 8-10m/min |
| 8 | diameter of shaft | 80mm |
| 9 | Weight | About 4T |
| 10 | Voltage | 380V 50Hz 3phases |
