| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich12 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Construction Works | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Power:: | 3KW-20.5KW | Chain Size:: | 20mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 5m*1.3m*1.3m-15m*1.3m*1.4m |
| Working Speed:: | 10-14m/min | Voltage:: | According To Requst |
| Highlight: | Cold Rolled EPS Foam Machine,35kw Polyurethane Sandwich Panel Machine,35kw EPS Foam Machine |
||

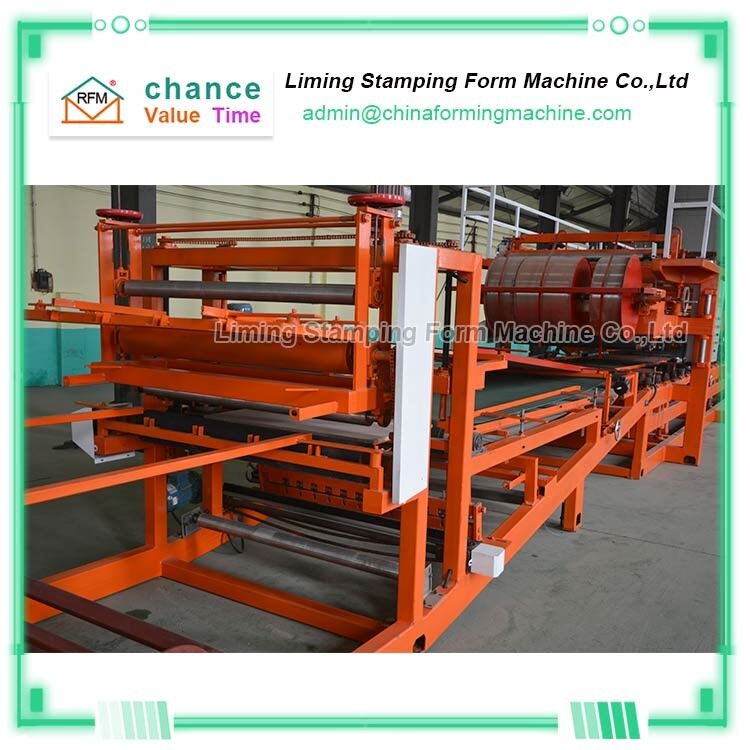

Polystyrene Cold Rolled Sandwich Panel EPS Foam Sheet Roll Forming Machine
"Polystyrene cold rolled sandwich panel EPS foam sheet roll forming machine" adopts a production process integrating gas, electricity and machinery. It is a mechanical equipment for producing cored color steel sandwich panels.
"Polystyrene cold rolled sandwich panel EPS foam sheet roll forming machine" production line has stable running speed and simple operation.
According to the user's needs, the length of the "Polystyrene cold rolled sandwich panel EPS foam sheet roll forming machine" is controlled by computer positioning, system positioning, and regularly displayed on the touch screen, and automatically counted and corrected.
"Polystyrene cold rolled sandwich panel EPS foam sheet roll forming machine" is driven by a worm gear to ensure a stable and uniform mixing speed.
"Polystyrene cold rolled sandwich panel EPS foam sheet roll forming machine" adopts frequency conversion speed regulation and can automatically cut off according to the preset length of the sandwich panel.
"Polystyrene cold rolled sandwich panel EPS foam sheet roll forming machine" main machine adopts the horizontal composite material of outsourcing rubber roller to protect the color steel plate paint surface and the pressure compound of the sandwich panel.
Technical parameters of Polystyrene Cold Rolled Sandwich Panel EPS Foam Sheet Roll Forming Machine
| Item | Specification |
| Raw material | Normally 0.2-0.6 aluminum or color steel |
| Speed | 3-6m/min (Depend on the working temperature) |
| Cutting type | Trace flying saw cutting |
| Drive | Chain drive |
| Electric control system | PLC frequency conversion control |
| Core material | EPS board or rock wool |
| Total power | 35kw |
| Power supply | 380V/50HZ Or Customized |
| Annual Output | 600 thousand square meters |
| Product width | 950-1200 mm (Flat Plate) |
| 950-980 mm (Corrugated Composite Board) | |
| Product thickness | 40-300mm |
| Equipment overall dimension (mm) | 40000*3600*3300 / 45000*3600*3300 |
