| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich9 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Control System:: | PLC | Feeding Width:: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm |
|---|---|---|---|
| Coil Weight:: | 6.5Ton | Size Of Sheet:: | 1200mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 30000*3000*2800mm |
| Working Speed:: | 10-14m/min | Hydraulic Station Motor Power:: | 11kw |
| Highlight: | Precast EPS sandwich panel machine,Aluminum Sheet EPS Sandwich Panel Machine,Precast EPS Panel Machine |
||

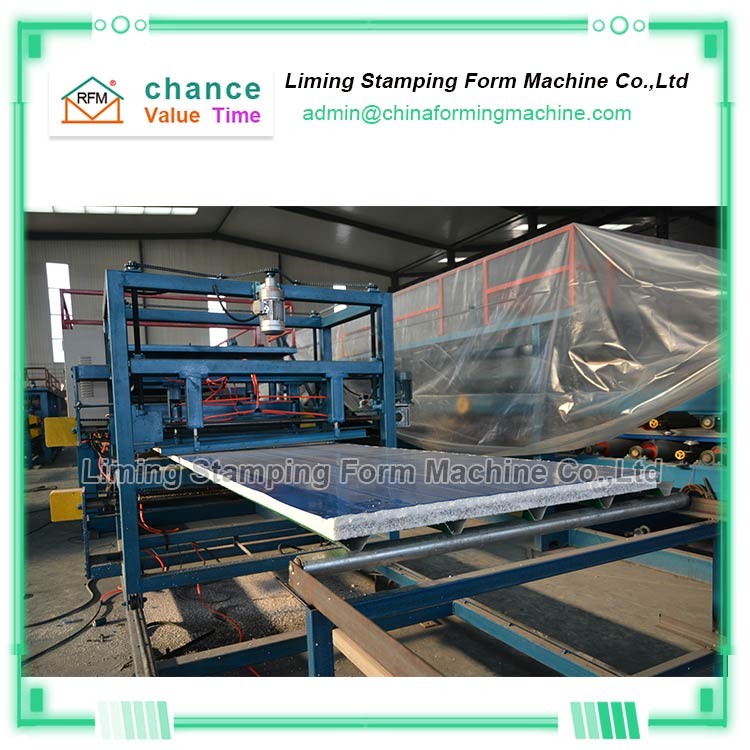

Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine
"Automatic precast EPS sandwich wall panel roll forming machine" adopts precision low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, and is controlled by a computer with accurate measurement.
"Automatic precast EPS sandwich wall panel roll forming machine" adopts advanced mechatronics production technology, with an annual production capacity of 500,000 square meters.
"Automatic precast EPS sandwich wall panel roll forming machine" can be compounded into corrugated sandwich panels at one time.
"Automatic precast EPS sandwich wall panel roll forming machine" consists of loading and unloading system, molding system, cutting equipment and composite system (compression, gluing, heating, laminating, crimping, grooving, trimming, pneumatic and automatic cutting). .
"Automatic precast EPS sandwich wall panel roll forming machine" application range: industrial plants, warehouses, house panels and wall panels.
Technical parameters of Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine
| Motor Power: | 3KW |
| Hydraulic Power | 202kw |
| Raw material: | Color steel sheet, Aluminum sheet |
| Inner diameter of coil: | φ500mm-φ600mm |
| Out diameter of coil: | φ1200mm |
| Weight of coil: | 10T |
| Thickness of sheet: | 0.3-0.7mm |
| Width of sheet: | 1250mm |
| Speed of uncoil: | 1.5-12m/min |
| Hydraulic pressure: | 6.3Mpa |
| Coil car: | |
| Hydraulic cylinder lift stroke: | up panel 0.5m,down panel 0.5m |
| Coil car stroke: | 0.5m |
| Pressure of hydraulic system: | 6.3Mp |
| Tightening mechanism | Magnetic brake |
