| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Feeding Width:: | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm |
|---|---|---|---|
| Production Capacity:: | 0-6m/min | Size Of Sheet:: | 1200mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 30000*3000*2800mm |
| Working Speed:: | 10-14m/min | Voltage:: | 380v 50Hz |
| Highlight: | 44 Rows Sandwich Panel Production Line,380v Sandwich Panel Equipment,380v Sandwich Panel Production Line |
||

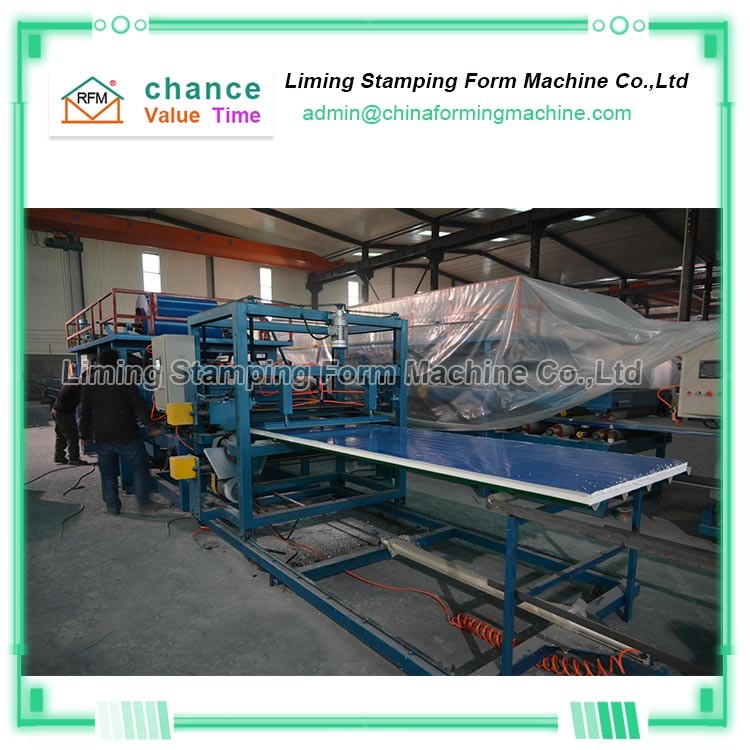

Rock Wool Sandwich Panel House Modular Sandwich Roll Forming Machine
"Rock wool sandwich panel house modular sandwich roll forming machine " adopts precision low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, and is controlled by a computer, with accurate measurement.
"Rock wool sandwich panel house modular sandwich roll forming machine " can compound flat and corrugated cardboard of various specifications and models. It can produce sandwich composite panels with a thickness of 40mm-300mm and a width of 950mm-1200mm, as well as corrugated high-strength composite panels with a thickness of 40mm-300mm and a width of 950mm-980mm.
"Rock wool sandwich panel house modular sandwich roll forming machine " equipment is suitable for color steel plates, aluminum plates, stainless steel plates, etc. as composite outer materials, and the inner layer is made of rock wool materials.
"Rock wool sandwich panel house modular sandwich roll forming machine " adopts advanced mechatronics production technology, with an annual production capacity of 500,000 square meters.
Technical parameters of Rock Wool Sandwich Panel House Modular Sandwich Roll Forming Machine
| No. | main parameter of Sandwich panel forming machine line | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1000&1200mm |
| 3 | Rollers | 17-44rows |
| 4 | Dimensions | 38.0*2.25*2.5m |
| 5 | Power | 30kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 2-6m/min |
| 8 | Diameter of the roller | Φ90mm |
| 9 | Weight | About 15 T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Processing precision | Within 1.00mm |
| 13 | Control system | PLC control |
