| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-cable 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 55 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Production Capacity:: | 20-40m/min | Rolling Thinckness:: | 1-2mm |
|---|---|---|---|
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Construction Works | Voltage:: | 380V |
| Weight: | 20Ton | Key Selling Points:: | Automatic |
| Warranty:: | 2 Years | Core Components:: | Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC |
| Shaft Diameter::: | 75mm | Material:: | GI |
| Highlight: | 40m/min Cable Tray Roll Forming Machine,380V Cable Tray Roll Forming Machine,40m/min Automatic Roll Forming Machine |
||

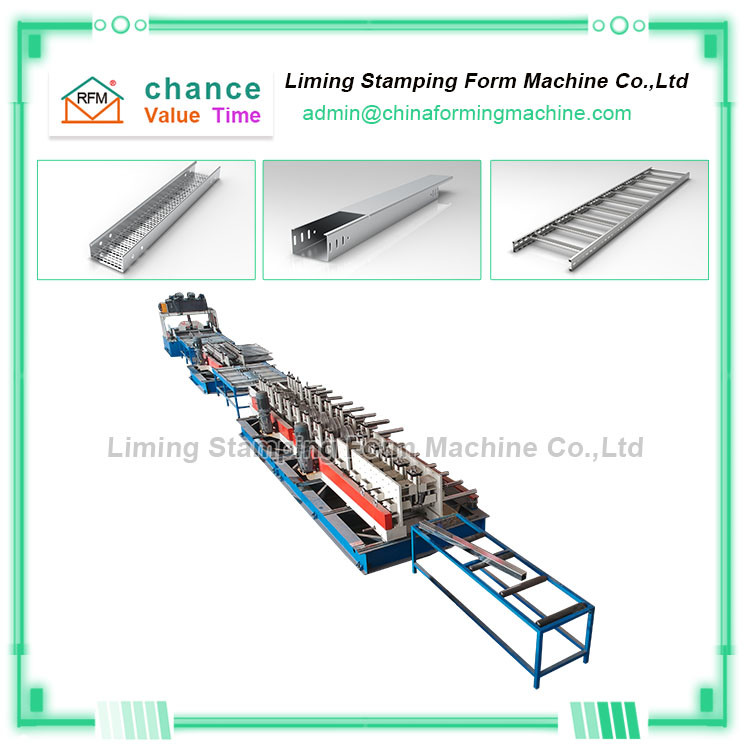

High Speed Fully Automatic Cable Tray Roll Forming Machine
Troughs play a major role in the set-up of electrical and data transmission systems and must therefore be designed and manufactured with particular care to ensure the safety of the same systems. LIMING's lines are flexible in use and guarantee fast turnaround and lower running costs, and can manufacture safe, quality troughs and other materials for power distribution, such as power cable ladders, structures for electrical cabinets, and curves and accessories for power cable troughs.
The power cable ladders manufactured with LIMING's innovatory machines effectively meet the needs of a sector where functionality is an absolute must.
Technical Parameter of High Speed Fully Automatic Cable Tray Roll Forming Machine
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.4-0.6mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5400mmx1400mmx1200mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2200KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens |
| 13 | PLC | Siemens |
| 14 | Total power (kw) | 9kw |
| 15 | Power of hydraulic system | 5.5kw |
| 16 | Power of main molding core | 5.5kw |
Cable Tray Roll Forming Machine
