| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 10.29 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 25 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 40set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.3-2mm |
|---|---|---|---|
| Production Capacity: | 10-20M/Min | Warranty: | 1 Years |
| Certification: | CE BV STV ISO | Voltage: | 380V Or 220V |
| Core Components: | Motor, Pump, PLC | Weight: | 12T |
| Highlight: | 0.3mm cable tray roll forming machine,380v cable tray roll forming machine,chains drive cable tray roll former |
||

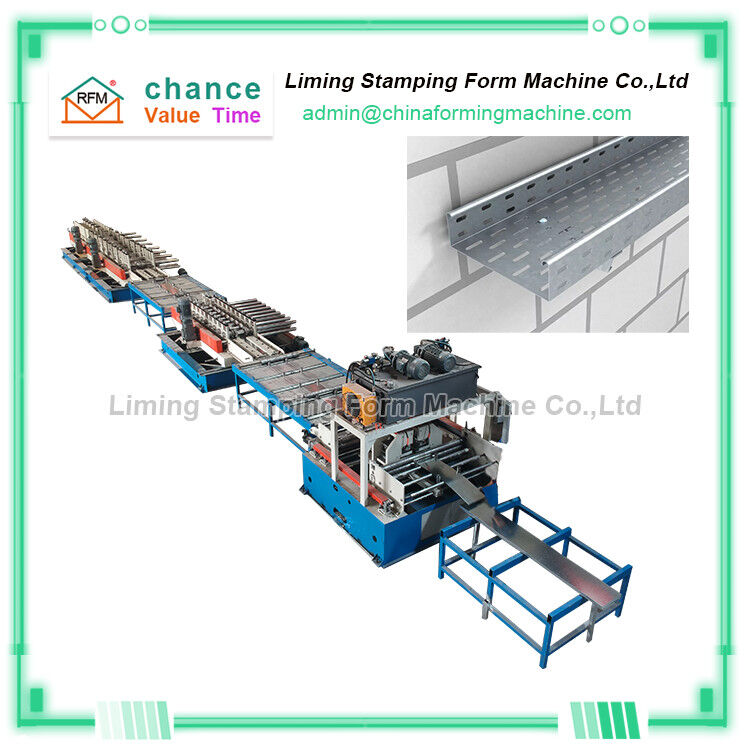

Length 35 Width 2.2 Height 1.8m Cable Tray Production Line 100-600mm Cable Tray Forming Machine
With the development of the digital age, cables and optical cables are not laid in sections, and the demand for cable trays is gradually increasing. In order to meet the needs of the market, Liming Pressure Machinery Co., Ltd. provides cable tray production lines for the market to help customers solve the production of cable trays.
Cable tray production line production process
Uncoiling-adjustable punching-small side cold rolling forming-large side cold rolling forming-fixed length cutting-finished product receiving
Technical parameters of Length 35 Width 2.2 Height 1.8m Cable Tray Production Line 100-800mm Cable Tray Forming Machine
| No. | Main parameter | |
| 1 | Length of the main part | 12500*2500*1400mm |
| 2 | Weight of main part | 12 T |
| 3 | Voltage | 380V-50HZ-3P (as customer’s request) |
| 4 | structure | steel plate welded |
| 5 | Basic Frame | 350# H steel welded |
| 6 | sturcture steel thick | 27 mm |
| 7 | Drive mode | By chains |
| 8 | Material of rollers | 45# steel with tempering |
| 9 | Material of shafts | Cr40 |
| 10 | Diameter of shafts | φ60mm |
| 11 | Number of rollers | 24 rollers |
| 12 | Main power | 20kw |
| 13 | Motor power of side to side adjustment | 1.5kw 1 set, and 1.1kw 1 set |
| 14 | Adjusting range of side to side | 100-600mm |
Cable tray production line service:
We will provide customers who purchase cable tray production lines with 24-hour manual customers and 24-month on-site repair services, and we will also provide customers with complete cable tray specifications and cable tray production lines when their cable tray production lines are shipped. The operation video is used to help customers more proficiently control the cable tray production line to help customers quickly bring benefits.
