| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 10.29 6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.3-1.5mm |
|---|---|---|---|
| Production Capacity: | 8-25M/Min | Warranty: | 1.5 Years |
| Certification: | CE BV STV ISO | Type: | 380V/3PH/50HZ |
| Cover Width: | 100~600 | Cutting: | Hydraulic Cutting Cr12mov, Quench HRC58-62 |
| Highlight: | 20m/min automatic cable tray punching machine,100mm automatic cable tray punching machine,cable tray punching rollformers machine |
||

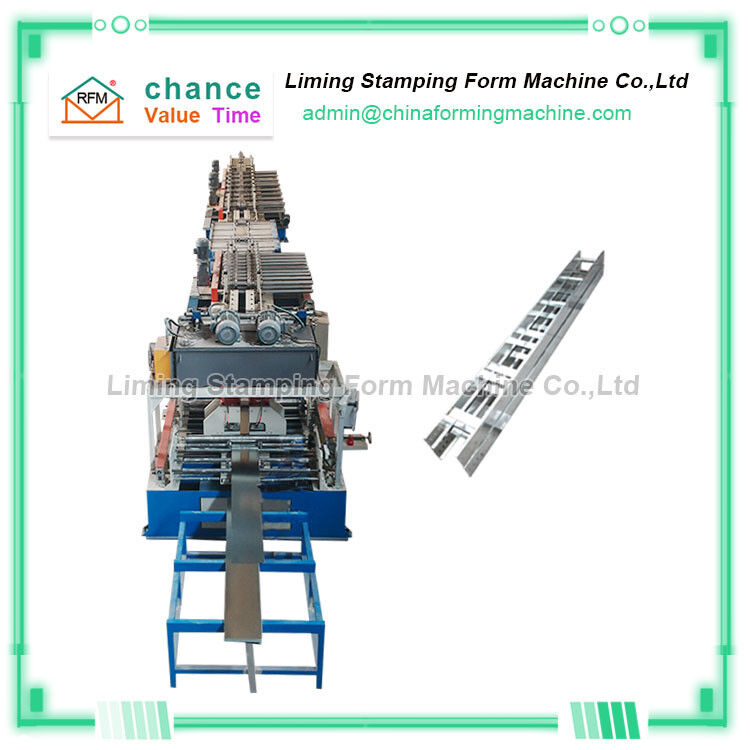

100mm-600mm Automatic Cable Tray Punching And Forming Machine, Production Speed 20m/Min
The cable bridge is divided into trough type, tray type, ladder type, net format and other structures, which are composed of brackets, supporting arms and installation accessories. The bridge frame in the building can be erected independently or attached to various buildings (structures) and pipe gallery supports. It should reflect the characteristics of simple structure, beautiful appearance, flexible configuration and convenient maintenance. It is very popular in the market. You need to produce cable trays. We can provide you with a punching machine for cable trays.
Technical parameters of 100mm-600mm Automatic Cable Tray Punching And Forming Machine, Production Speed 20m/Min
|
Main Technical Parameters
|
|||
|
Item
|
Parameters
|
Notes
|
|
|
Suitable Material
|
Type
|
Steel Sheet
|
|
|
Thickness(mm)
|
0.3-1.5
|
|
|
|
Yield stress
|
345 Mpa
|
|
|
|
Product Specfications
|
Cover width
|
100~600
|
Detail as the client's drawing
|
|
Length
|
Any Length
|
|
|
|
Power Requirement
|
Type
|
380V/3PH/50HZ
|
|
|
Main Motor Power(KW)
|
11
|
Depend on actual design
|
|
|
Motor for Adjust Width
|
3
|
Depend on actual design
|
|
|
Hydraulic Power(KW)
|
5.5
|
Depend on actual design
|
|
|
Forming Speed(m/min)
|
8-25
|
Not include the time of punching and cutting
|
|
|
Forming Stand
|
18
|
Depend on actual design
|
|
|
Type of Cutting
|
hydraulic cutting
|
|
|
|
Control System
|
Mitsubishi PLC and inverter
|
|
|
|
Total Weight(T)
|
11
|
Depend on actual design
|
|
The cable tray punching and forming machine is composed of an uncoiling device, a servo feeding and straightening device, a punching device, a forming host, a hydraulic shearing device, and a receiving device.
The whole machine adopts all-system Delta electronic control control, which realizes human-machine interconnection and automated production, which can help you greatly save labor costs.
The cable tray punching forming machine can produce products with an effective width of 100mm-600mm, which can help you save the space and cost of purchasing multiple equipment.
If your factory area is limited, the cable tray punching forming machine can be customized for segmented production at the same time. This can solve your space problem and improve production efficiency.
