| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 10.29 4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.3-2.0mm |
|---|---|---|---|
| Production Capacity: | 8-20M/Min | Warranty: | 2 Years |
| Certification: | CE BV STV ISO | Type: | 380V/3PH/50HZ |
| Cover Width: | 100~600 | Cutting: | Hydraulic Cutting Cr12mov, Quench HRC58-62 |
| Highlight: | 0.3mm cable tray roll forming machine,gr15 trunking cable manufacturing machine,cable tray roll forming machine 380v |
||

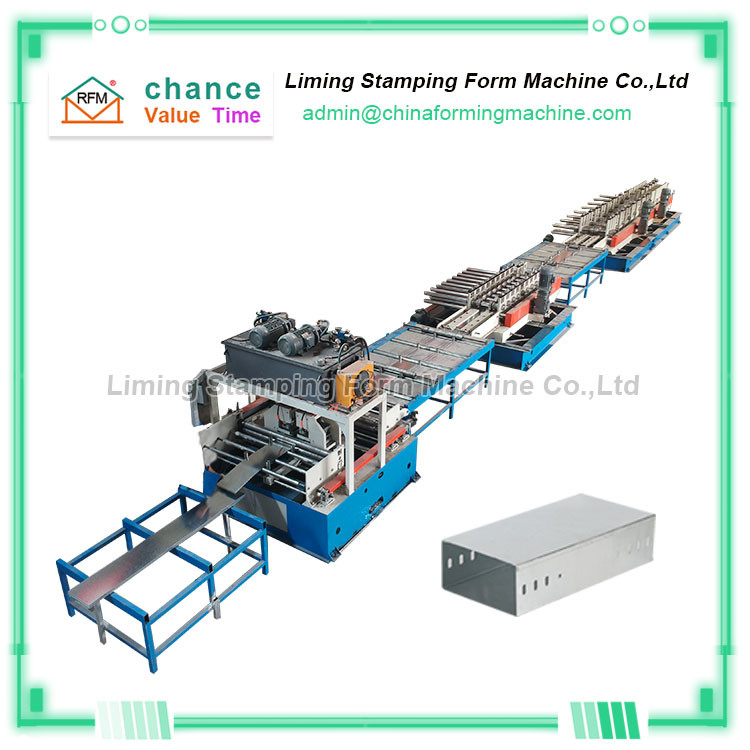

High-Tech Multi-Specification Gr15 Trunking Machine
Liming Forming Machinery Co., Ltd. has been committed to the manufacture, design, sales and development of wire slot machines for 25 years. At the same time, Liming Company has a professional technology, sales, design, R&D, after-sales team, and Liming Company has always been guided by the actual needs of users, thinking that users can reduce production costs and improve production efficiency as the basics, and strive for survival on the basis of innovative technology. The idea is to provide domestic and foreign customers with high-precision, long-life and high-efficiency wire slot machines, which are well received by people.
Technical parameters of High-Tech Multi-Specification Gr15 Trunking Machine
|
Main Technical Parameters
|
|||
|
Item
|
Parameters
|
Notes
|
|
|
Suitable Material
|
Type
|
Steel Sheet
|
|
|
Thickness(mm)
|
0.3-2.0
|
|
|
|
Yield stress
|
345 Mpa
|
|
|
|
Product Specfications
|
Cover width
|
100~600
|
Detail as the client's drawing
|
|
Length
|
Any Length
|
|
|
|
Power Requirement
|
Type
|
380V/3PH/50HZ
|
|
|
Main Motor Power(KW)
|
11
|
Depend on actual design
|
|
|
Motor for Adjust Width
|
3
|
Depend on actual design
|
|
|
Hydraulic Power(KW)
|
5.5
|
Depend on actual design
|
|
|
Forming Speed(m/min)
|
8-20
|
Not include the time of punching and cutting
|
|
|
Forming Stand
|
18
|
Depend on actual design
|
|
|
Type of Cutting
|
hydraulic cutting
|
|
|
|
Control System
|
Mitsubishi PLC and inverter
|
|
|
|
Total Weight(T)
|
11
|
Depend on actual design
|
|
Advantages of cable tray forming machine:
1. One-time forming of cable tray equipment, which can produce a variety of specifications of cable tray products, with a width of 100-600 and a side plate of 30-150mm that can be freely adjusted, and the punching distance can also be freely adjusted according to production needs.
2. The cable tray forming machine is divided into uncoiling device, punching device, small-side forming device, large-side forming device, and cutting device. Each device can be switched and adjusted by one key as a whole, and it also supports single parameter adjustment.
3. The cable tray forming machine adopts a through-shaft design, with small adjustment errors, switching specifications, and precise dimensions
4. The cable tray forming machine adopts an integrated casting middle plate, which has strong load-bearing capacity, stable production and high production efficiency.
