| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 10.29 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.8-1.5mm |
|---|---|---|---|
| Production Capacity: | 8-20M/Min | Warranty: | 1.5 Years |
| Certification: | CE BV STV ISO | Voltage: | 380V Or As Customize |
| Dimension(L*W*H): | 6.5*1.3*1.1m | Weight: | 7T |
| Highlight: | punching cable tray roll forming machine,plc cable tray roll forming machine,2.5mm thick cable tray forming machine |
||

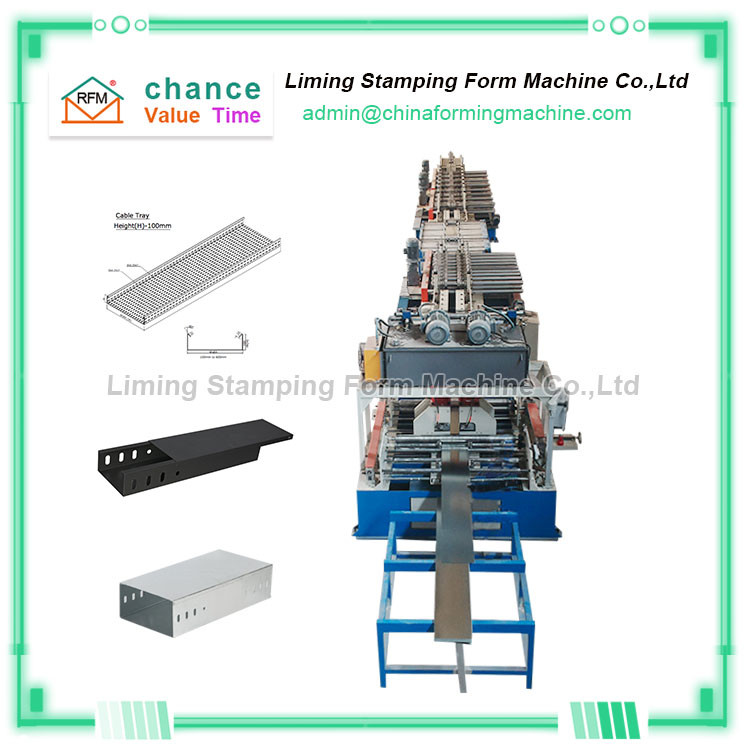

One machine, multi-type 2.5mm thick cable tray punching forming machine
The cable tray forming machine is an equipment used to produce cable trays. The cable tray punching forming machine can roll cable tray products with a thickness of 0.8-2.5mm. At the same time, the cable tray punching forming machine can roll the cable tray products The width is between 100-800mm and the height is between 20-150mm, and the cable tray products produced by the cable tray punching forming machine are accurate in size, easy to install, and corrosion-resistant, and are well received by the power industry.
Technical parameters of One machine, multi-type 2.5mm thick cable tray punching forming machine
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.8-1.5 mm |
| Side rail height | 50-60mm |
| length | Max3000mm |
| Width | 50-500mm |
| Production capacity | 8-15m/min |
| Machine details | |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| main frame |
350 H steel |
|
forming steps |
22rows |
|
hydraulic station power |
15 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| hydraulic oil | 40# hydraulic oil |
Process of punching forming machine for cable tray:
Uncoiling--feeding--punching--small-side cold rolling--large-side cold rolling--fixed-length shearing--finished product receiving
Advantages of this cable tray punching machine:
1. The cable tray punching forming machine can be produced in sections at the same time, or it can be connected in series to form a production line, which can help you solve the problem of insufficient space
2. The punching device of the cable tray punching forming machine adopts an adjustable design, which can be adjusted at will according to the distance of the hole you need.
3. The cable tray punching forming machine can produce different types of cable tray products, and it can be adjusted automatically only by filling in the data, which can help you save a lot of manual adjustment costs and time
After-sales service of the cable tray punching forming machine:
When the cable tray punching forming machine is shipped, we will provide you with a parts list. After receiving the goods, we will provide you with the operation video of the cable tray forming machine so that you can quickly and skillfully operate the cable tray forming machine. At the same time, we also We will provide you with 24-hour manual customer service to help you solve all the problems you don’t understand about the cable tray forming machine
