| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 10.29 4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.8-2.0mm |
|---|---|---|---|
| Production Capacity: | 8-20M/Min | Warranty: | 1 Years |
| Certification: | CE BV STV ISO | Type: | 380V/3PH/50HZ |
| Cover Width: | 100~600 | Weight: | 6T |
| Highlight: | 600mm wide cable rolling machine,100mm wide cable tray bending machine,liming cable rolling machine |
||

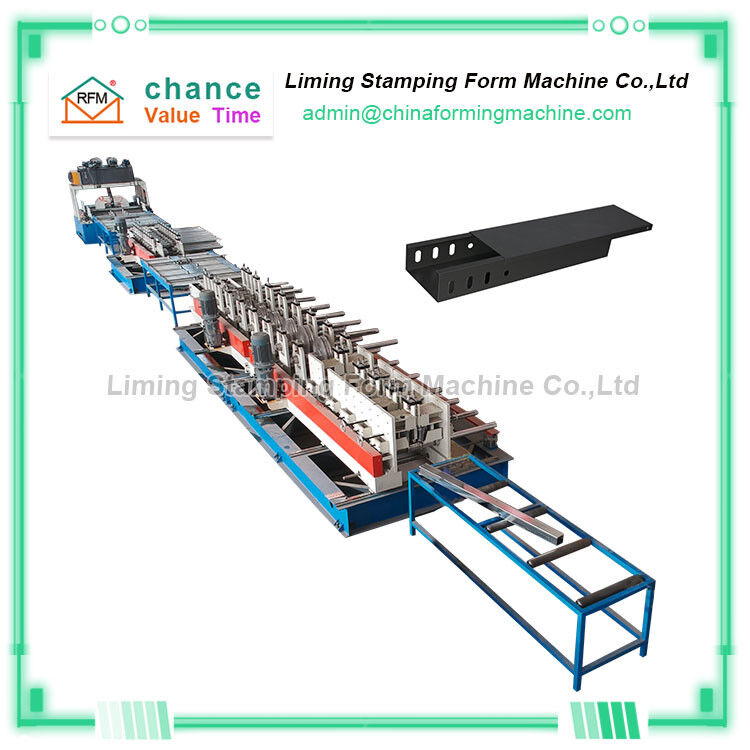

Fully automatic 100-600mm wide cable tray forming machine
The cable tray forming machine is a special equipment for cable trays designed and manufactured by Liming Pressing Machinery Co., Ltd. for cable tray manufacturers; it can produce trough-type cable trays, tray-type cable trays, and ladder-side cable trays. There is no need to replace rollers. A set of rollers completes everything. Production of specification bridge products.
Technical parameters of Fully automatic 100-600mm wide cable tray forming machine
|
Main Technical Parameters
|
|||
|
Item
|
Parameters
|
Notes
|
|
|
Suitable Material
|
Type
|
Steel Sheet
|
|
|
Thickness(mm)
|
0.8-2.0
|
|
|
|
Yield stress
|
345 Mpa
|
|
|
|
Product Specfications
|
Cover width
|
100~600
|
Detail as the client's drawing
|
|
Length
|
Any Length
|
|
|
|
Power Requirement
|
Type
|
380V/3PH/50HZ
|
|
|
Main Motor Power(KW)
|
11
|
Depend on actual design
|
|
|
Motor for Adjust Width
|
3
|
Depend on actual design
|
|
|
Hydraulic Power(KW)
|
5.5
|
Depend on actual design
|
|
|
Forming Speed(m/min)
|
8-20
|
Not include the time of punching and cutting
|
|
|
Forming Stand
|
18
|
Depend on actual design
|
|
|
Type of Cutting
|
hydraulic cutting
|
|
|
|
Control System
|
Mitsubishi PLC and inverter
|
|
|
|
Total Weight(T)
|
11
|
Depend on actual design
|
|
Advantages of cable tray forming machine:
1. One-time forming of cable tray equipment, which can produce a variety of specifications of cable tray products, with a width of 100-600 and a side plate of 30-150mm that can be freely adjusted, and the punching distance can also be freely adjusted according to production needs.
2. The cable tray forming machine is divided into uncoiling device, punching device, small-side forming device, large-side forming device, and cutting device. Each device can be switched and adjusted by one key as a whole, and it also supports single parameter adjustment.
3. The cable tray forming machine adopts a through-shaft design, with small adjustment errors, switching specifications, and precise dimensions
4. The cable tray forming machine adopts an integrated casting middle plate, which has strong load-bearing capacity, stable production and high production efficiency.
