| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-carr2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Tile Forming Machine | Tile Type:: | Steel |
|---|---|---|---|
| Applicable Industries:: | Manufacturing Plant | Production Capacity:: | 10-12m/min |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Power:: | 15kw | Shaft Material:: | 45# High Grade Steel |
| Pump Station:: | 5.5kw | Forming Stations:: | 15 |
| Highlight: | T1.27mm Carriage Board Roll Forming Machine,Cr12 cutting Carriage Board Roll Forming Machine |
||

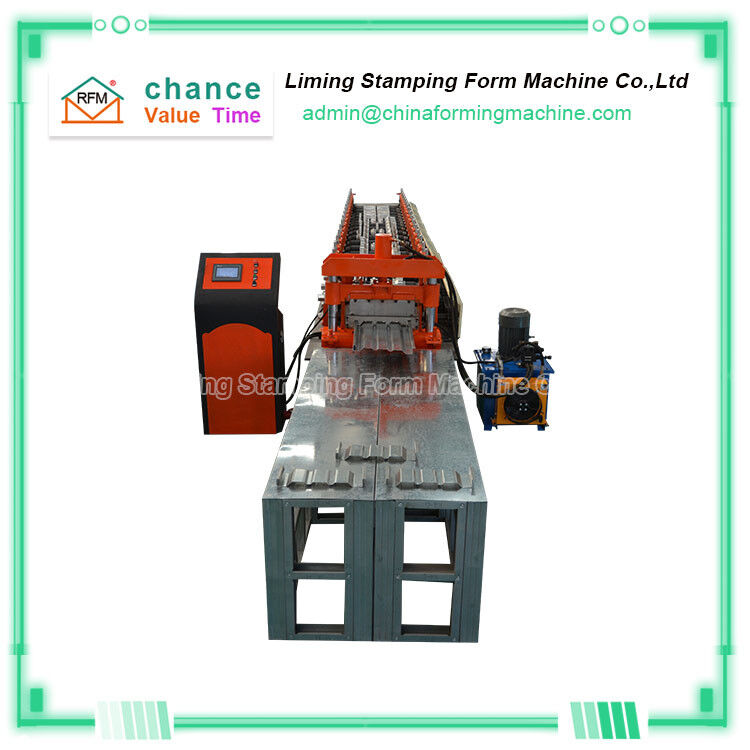

Model 1130 Carriage Board And Container Board Roll Forming Machine
The main products produced by "model 1130 carriage board and container board roll forming machine" include box plates and other types of container plate materials.
Users can customize the "model 1130 carriage board and container board roll forming machine" according to the required panel thickness and height to improve the quality of automobile assembly. The use of specific car partitions can increase the shape of the car.
The production capacity of "model 1130 carriage board and container board roll forming machine" is highly automated and the equipment is easier to operate.
The use of "model 1130 carriage board and container board roll forming machine" to produce automobile plates can fully improve the utilization rate of raw materials.
Technical parameters of Model 1130 Carriage Board And Container Board Roll Forming Machine
| 1 | Suitable material | Mild steel GI, steel |
| 2 | Raw material thickness | 1.27mm (±0.3mm) |
| 3 | Main frame | 20mm |
| 4 | Shaft | φ85mm ,45# steel with tempering 18shaft |
| 5 | Roller | GCr15 with quenching and Color-harden |
| 6 | Chain | 2 inch Sprocket and chain |
| 7 | Main Motor | 11 kw PM reducer |
| 8 | Forming speed | 8-12m/min |
| 9 | Mould cutting material | Cr12 steel |
| 10 | Length of table | 3 meters |
| 11 | Control system | PLC |
| 12 | Voltage | as your need |
