| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-carr3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Tile Forming Machine | Tile Type:: | Steel |
|---|---|---|---|
| Applicable Industries:: | Building Material Shops, Construction Works | Condition:: | New |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Use:: | Car | Shaft Material:: | 45# High Grade Steel |
| Pump Station:: | 5.5kw | Forming Stations:: | 15 |
| Highlight: | 380V Automatic Roll Forming Machine,15 Stations Carriage Plate Making Machine,380V Carriage Plate Making Machine |
||

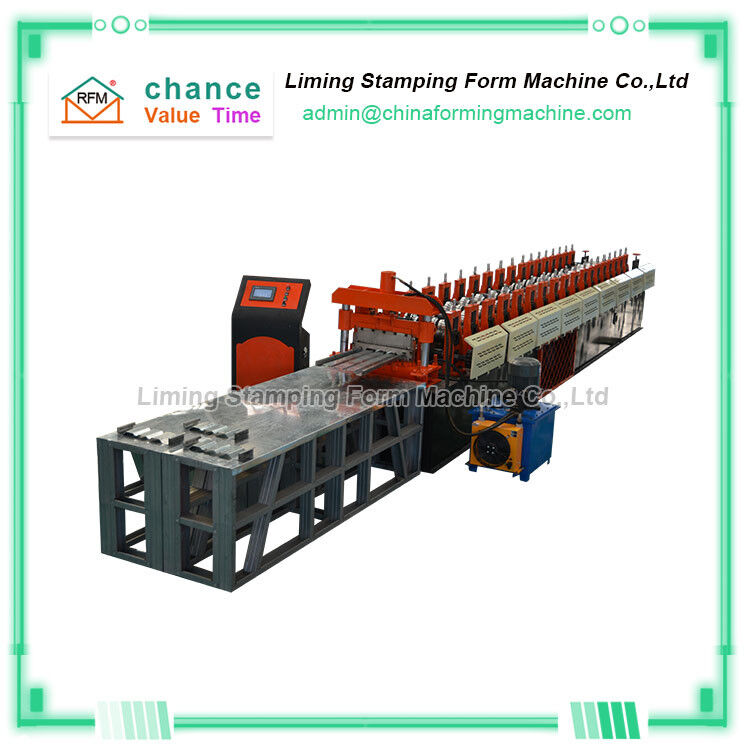

Heat Preservation And Widening Carriage Board Roll Forming Machine
The main purpose of "heat preservation and widening carriage board roll forming machine" is to produce car plates, container plates, etc. that are designed and customized according to the thickness, width and peak height of the car plates.
"heat preservation and widening carriage board roll forming machine" is the theme of automobile processing products, which requires professional production skills to improve the assembly efficiency of automobile products.
The production capacity of the "heat preservation and widening carriage board roll forming machine" is highly automated, and the equipment is easy to operate.
Under normal circumstances, the steel structure of the products produced by the "heat preservation and widening carriage board roll forming machine" is environmentally friendly and can improve the production quality of automotive equipment.
Technical parameters of Heat Preservation And Widening Carriage Board Roll Forming Machine
| No. | Heat preservation and widening Carriage Board roll forming machine | |
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 1200mm or as you required |
| 6 | Thickness of material | 1-3mm or as your needs |
| 2 | Working speed | 10-20m/min |
| 3 | Main motor power | 22kw with cycloidal reducer |
| 4 | Hydraulic station power | 4kw |
| 5 | Electrical control system | PLC control system |
| 7 | Shaft diameter | 80mm |
| 8 | Roller station | 15 rows |
| 10 | Dimension | 7500x1500x1910mm |
| 11 | Weight | About 8 T |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 14 | Material of cutting | Cr12 mould steel with quenched treatment |
| 15 | Working time | Can be 24 hours |
| 16 | Workers | 1-2 only |
