| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-carr5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Tile Forming Machine | Raw Material:: | Galvanized Sheet |
|---|---|---|---|
| Applicable Industries:: | Building Material Shops, Construction Works | Key Selling Points:: | Long Service Life |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Voltage: | 380v 3ph 50hz | Dimension(L*W*H):: | 7800*1500*1200mm |
| Cutting Blade Material:: | Cr 12 High Grade Steel | Weight:: | 6.5 Ton |
| Highlight: | 8m/Min Car Panel Forming Machine,16 Rows Car Panel Forming Machine |
||

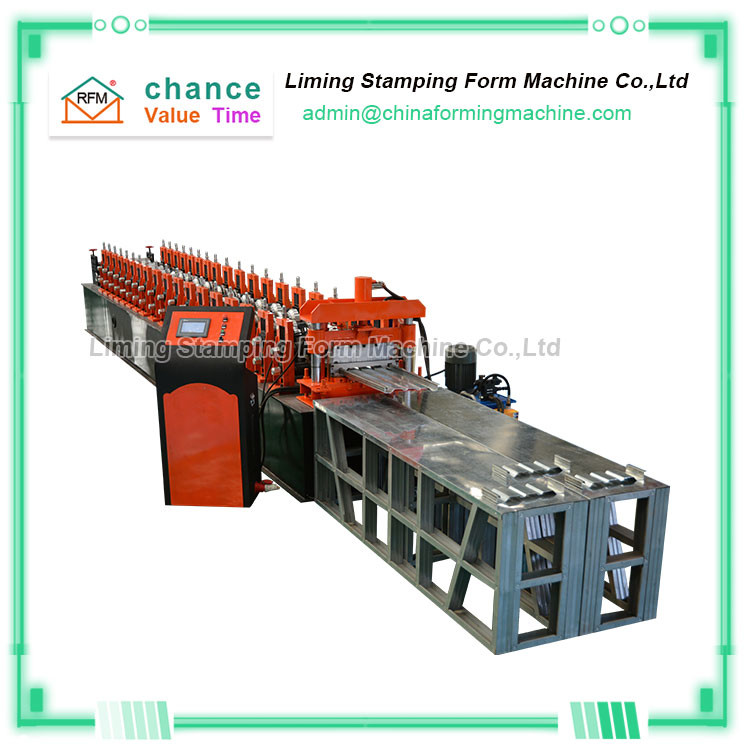

1025 Type Automatic Carriage Board Roll Forming Machine
"1025type automatic carriage board roll forming machine" is composed of unwinding device, forming roll host, forming cutting, computer hydraulic system, finished product support device, etc.
Main features of "1025type automatic carriage board roll forming machine" :
1. Suitable for the production of wide plate forming. The products produced by "1025type automatic carriage board roll forming machine" are not only beautiful in appearance, but also highly automated, which is convenient for operators to use.
2. By operating in accordance with the operating methods provided by the manufacturer, users can improve the efficiency of the "1025type automatic carriage board roll forming machine" and extend the service life of the "1025 Automatic Sliding Forming Machine".
3. "1025type automatic carriage board roll forming machine" has a high utilization rate of raw materials and is mainly used to manufacture suitable light truck board.
Technical parameters of 1025 Type Automatic Carriage Board Roll Forming Machine
| frame | 350H steel welding |
| Stand | 20mm |
| Guided feeder | Side slide |
| Transmission form | Wall plate chain drive |
| Shaft diameter | φ90mm |
| Chain | 1.5 inch |
| Forming machine motor power | 11KW * 2 |
| Forming machine speed | 6-8m / min |
| Forming rows | 16 rows |
| Number of curved rows | 3 rows |
| Roll material | 40Cr |
| Coil thickness | 0.8-1.2mm |
| Material development width | 1250mm |
| Forming width | 1120mm |
