| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-carr11 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Cold Roll Forming Machinery | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Production Capacity:: | 25M/min | Rolling Thinckness:: | 0.3-0.8mm |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Voltage: | 380V/220V/ 110V | Dimension(L*W*H):: | 7800mm*2000mm*1250mm |
| Cutting Blade Material:: | Cr 12 High Grade Steel | Weight:: | 1200kg |
| Highlight: | 25M/Min Carrier Board Forming Machine,ISO Carriage Board Making Machine,25M/Min Carriage Board Making Machine |
||

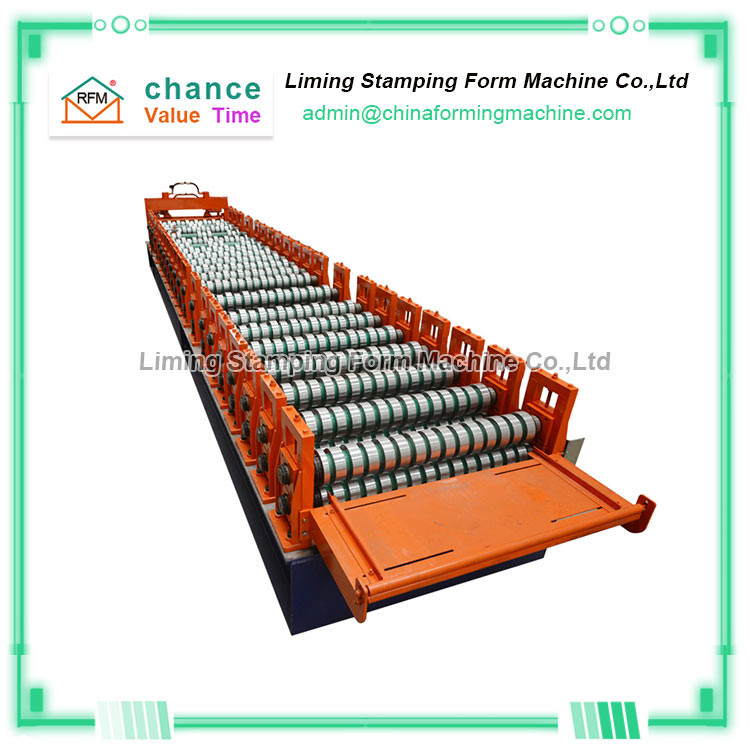

Carrier Board Roll Forming Machine With High Wear Resistance
"Carrier board roll forming machine with high wear resistance" is easy to operate, suitable for 0.25mm-2mm color paint or galvanized sheet
"Carrier board roll forming machine with high wear resistance" is beautiful, coordinated, reliable in quality and durable. Laminate floor design. The bottom plate is made of high-quality square steel plate to ensure the bearing capacity of the bracket. The finished product produced by the "high wear-resistant bearing plate roll forming machine" is strong, wear-resistant, and easy to install and unload.
The center lines of the upper and lower rollers of the "carrier board roll forming machine with high wear resistance" should be on the same plane, based on the center wheel, the flatness is not greater than 1mm, the gap between the upper and lower rollers is equal to each row, and the gap deviation is + 0.1mm.
""Carrier board roll forming machine with high wear resistance" will be equipped with a set of lubrication system. When the machine is running, it will automatically lubricate all bearings and motion guides of the gearbox gear mechanism.
Technical parameters of Carrier Board Roll Forming Machine With High Wear Resistance
| Equipment operation | Decking machine |
| Voltage | 415v/60HZ |
| Thickness of sheet(mm) | 0.8-1.5MM |
| Material width(mm) | 1250 |
| Formed width(mm) | 1200 |
| Productivity | 8-12 M/Min |
| Roller station | 13 rows |
| Diameter of shaft | 90MM |
| Dimension of main structure(mm) | 7500*1500*1200 |
| Weight | 6.5Ton |
| Main power(kw) | 15KW |
| Driven system | Chain |
| Power of hydraulic system | 5.5KW |
| Power of main molding core | 15KW |
| precision | within 1.00mm |
