| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-cable3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Construction Works | Cutting Type:: | Hydralic Cutting |
|---|---|---|---|
| Rolling Thinckness:: | 1-2mm | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Voltage: | 380V/220V/ 110V | Production Capacity:: | 8-15m/min |
| Shaft Material:: | 45# Steel | Use:: | Step |
| Highlight: | Tank Cable Tray Roll Forming Machine,15m/min Cable Tray Roll Forming Machine |
||

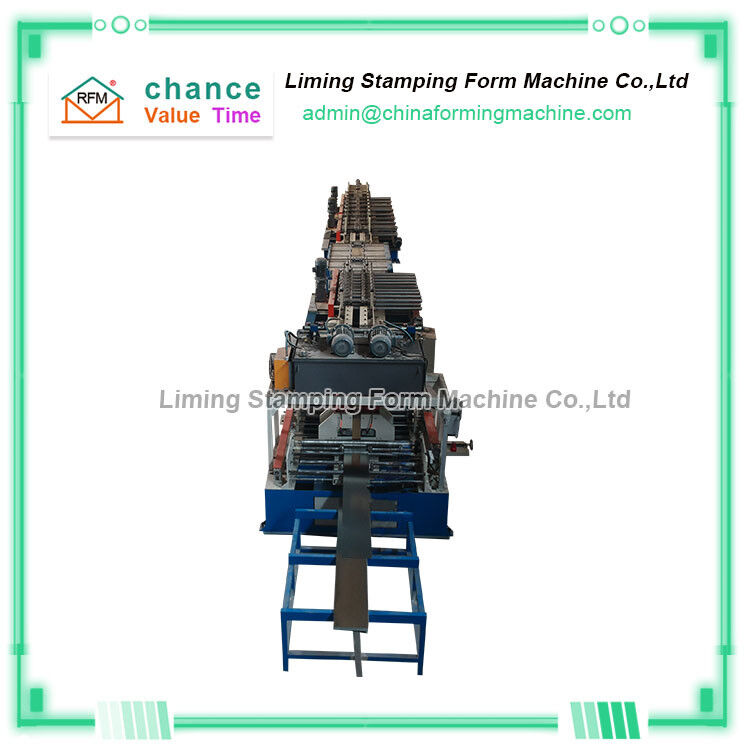

Galvanized Tank Cable Tray Roll Forming Machine
"Galvanized tank cable tray roll forming machine" is used for forming cable trays, so it is mainly used for the production of cable trays
The attribute of "Galvanized tank cable tray roll forming machine" is a single-roll forming unit. The composition of "galvanized trough cable tray forming machine" includes passive loading frame, leveling device, punching device, and cutting device after forming. , Hydraulic station and computer control system, etc.
"Galvanized tank cable tray roll forming machine" , its main advantage is that it can realize automatic operation with a high degree of automation. In addition, its installation and operation are simple, and products of different specifications can be produced.
Technical parameters of Galvanized Tank Cable Tray Roll Forming Machine
| Decoiler: | Electric feeding, hydraulic tightening |
| Loading weight: | 5T |
| Coil ID: | φ508mm/φ610mm |
| Coil expansion range: | φ450-φ530mm/φ630mm |
| Motor power: | 5.5kw |
| Hydraulic system power: | 3kw Shaft diameter: φ190mm Tighten cylinder diameter: φ200mm |
| Hydraulic system oil pump: | vane pump Hydraulic system solenoid valve brand: Beijing huade |
