| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-cable5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel | Cutting Type:: | Hydralic Cutting |
|---|---|---|---|
| Rolling Thinckness:: | 1-2mm | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Voltage: | 380V | Production Capacity:: | 4-6m/min |
| Weight: | 6 Tons | Key Selling Points:: | Automatic |
| Highlight: | SS Cable Tray Making Machine,6m/Min Tray Forming Machine,6m/Min Cable Tray Making Machine |
||

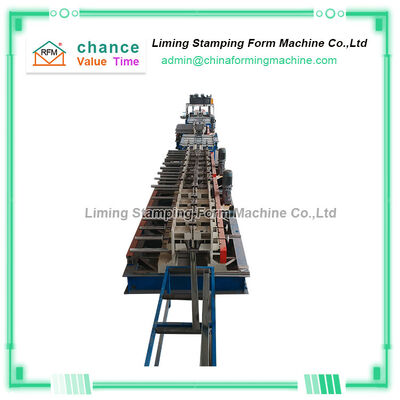

Stainless Steel Ladder Cable Tray Roll Forming Machine
The cable tray forming machine can be divided into trough type, bridge type and step type, mesh and so on.
"Stainless steel ladder cable tray roll forming machine" produces cable trays. Different specifications can be completed by changing the mold. The roll bending machine adopts a combined adjustable type.
"Stainless steel ladder cable tray roll forming machine" can complete a set of rollers, complete all the specifications of the tray products, and complete the specification change by adjusting the opening of the forming machine and the number of rollers.
"Stainless steel ladder cable tray roll forming machine" is an improved design based on relevant domestic and foreign materials. This type of cable tray has relatively low cost, light weight, special shape, good heat dissipation and good air permeability, and is usually used for cables with larger diameters. Larger cables are more suitable for high-voltage or low-voltage power cables.
Technical parameters of Stainless Steel Ladder Cable Tray Roll Forming Machine
| 1 | Suitable to process: | Color steel plate, galvanized strip, aluminum coils and etc. |
| 2 | Width of the product: | 100-600mm |
| 3 | Roller station: | 18-22 rows |
| 4 | Thickness of feeding material: | 1.0-2.0 mm |
| 5 | Productivity: | 8-12m/min |
| 6 | Rollers material: | 45# carbon steel |
| 7 | Diameter of shaft: | 90mm |
| 8 | Weight About: | 9.0 T |
| 9 | Size of the machine: | 9.0*1.3*1.5mm |
| 10 | Voltage: | 380V 50Hz 3Phase |
| 11 | Main power: | 11 kw*2 |
