| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-cable7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Tile Type:: | Steel | Cutting Type:: | Pre Cutting |
|---|---|---|---|
| Rolling Thinckness:: | 1-2mm | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Feeding Thickness::: | 1-2mm | Weight: | 6 Tons |
| Cutting Blade Material::: | Cr12 | ||
| Highlight: | 15KW Cable Tray Production Line,22 Rows Cable Tray Manufacturing Machine,22 Rows Cable Tray Production Line |
||

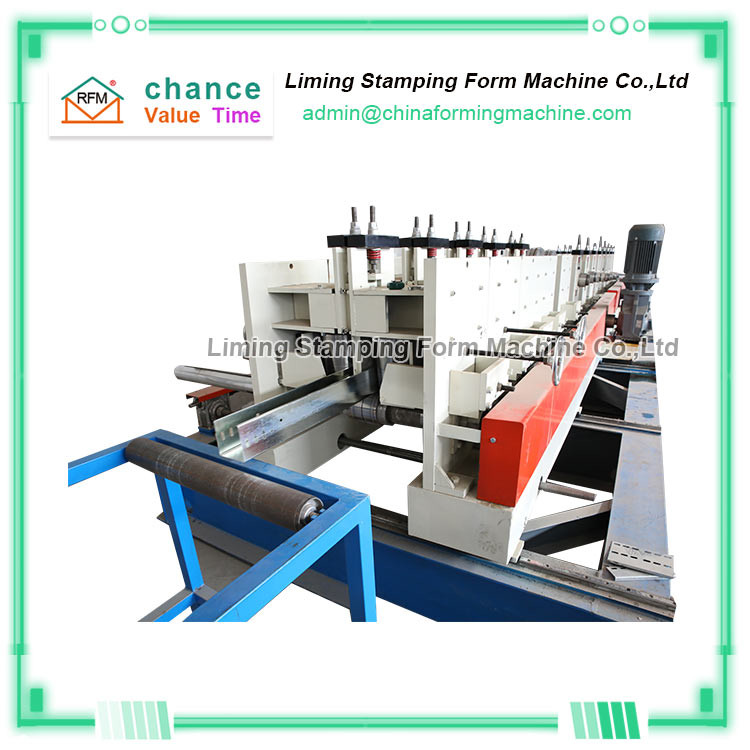

Stainless Steel Corrosion Resistant Cable Tray Roll Forming Machine
Specification selection of "Stainless steel corrosion resistant cable tray roll forming machine"
1. The width and height of the bridge should be consistent with the cable filling rate, and should not exceed the specified value of the relevant specifications. The power line can be 40-50%, the control line can be 50-70%, and a 10-25% development margin should be reserved.
Specification selection of"Stainless steel corrosion resistant cable tray roll forming machine"
2. The specifications of various elbows and accessories should meet the project layout conditions and match the bridge frame.
Specification selection of "Stainless steel corrosion resistant cable tray roll forming machine"3. The selection of hanger specifications should be configured according to conditions such as bridge specifications, number of floors and span. And should meet the load requirements.
"Stainless steel corrosion resistant cable tray roll forming machine" is composed of decoiler, leveling device, punching device, cutting device after forming, hydraulic station and computer control system.
Technical parameters of Stainless Steel Corrosion Resistant Cable Tray Roll Forming Machine
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.8-1.5 mm |
| Side rail height | 50-60mm |
| length | Max3000mm |
| Width | 50-500mm |
| Production capacity | 8-15m/min |
| Machine details | |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| main frame | |
| 350 H steel | |
| forming steps | 22rows |
| hydraulic station power | 15 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| hydraulic oil | 40# hydraulic oil |
| After sale-services | |
| Delivery time | 30 workdays after receiving the deposit |
| Payments | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |
