| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Type:: | Tile Forming Machine | Tile Type:: | Glazed |
|---|---|---|---|
| Core Components:: | Motor, Pump, Engine, PLC | Production Speed: | 5m-15m/min |
| Dimension(L*W*H):: | 8700*2230*1330mm | Voltage: | 380V 50Hz 3Phases |
| Marketing Type:: | Ordinary Product | Feeding Width:: | 1220mm, 900mm, 1200mm, 1000mm |
| Weight: | 13000KG (estimated Only) | Warranty: | 18 Month |
| Highlight: | 720 Metal Deck Forming Machine,Glazed Decking Forming Machine,720 Decking Forming Machine |
||

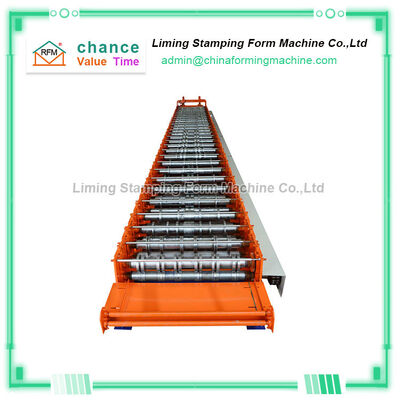

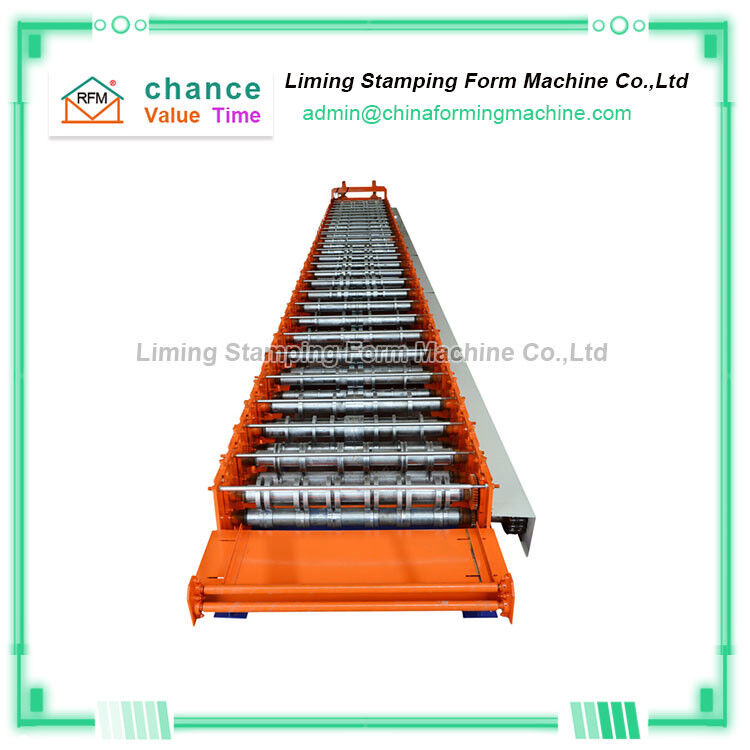

Building Color Steel 720 Floor Deck Forming Machine
The product floor (steel deck, construction profile steel plate) produced by "Building color steel 720 floor deck forming machine" is made of galvanized steel sheet rolled and cold-formed, and the cross section is V-shaped, U-shaped, and trapezoidal. Or similar type of waveform.
The "Building color steel 720 floor deck forming machine" is mainly used as a template, but it can also be used for other purposes.
The construction sequence of "Building color steel 720 floor deck forming machine" concrete composite structure:
1. The surface of the steel beam is smooth and clean, and the steel bottom plate is welded to the steel beam according to the plan;
2. According to the welding procedure, weld the load-bearing plate to the steel beam;
3. Fix the retaining ring between the diamond bearing plates with clips;
4. Use a welding gun to fix the scissors on the composite wind harness;
5. Fasten the steel mesh according to the design requirements;
6. Pouring concrete.
Features of the steel floor deck produced by "Building color steel 720 floor deck forming machine":
1. "Building color steel 720 floor deck forming machine" replaces the traditional formwork and makes up for the shortcomings of the traditional formwork;
2. "Building color steel 720 floor deck forming machine", with simple structure, fast and easy to assemble;
3. "Building color steel 720 floor deck forming machine" has light weight, high strength, large bearing capacity and good seismic resistance;
Main parameters of Building Color Steel 720 Floor Deck Forming Machine
| Material |
| Material Thickness(&):0.5-1.0mm |
| Applicable material:Galvanized Steel Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
| Capacity: Max. 3Ton |
| 2) Cold Rolling Mills: |
| Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ; |
| Motor Driving,Gear chain transmission, 22 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling) |
| Main Motor=15KW , Frequency speed control |
| Forming speed approx.12-18m/min |
| 3)Hydraulic Cutting device |
| hydraulic motor: 4KW, Hydraulic pressure range: 0-12Mpa |
| Cutting tool material: Cr12, Heat treatment |
| 4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo) |
| Control the quantity and cutting length automatically |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, two units |
