| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Retail, Construction Works , Advertising Company | After Warranty Service:: | Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Rack:: | Welded With 400 Steel | Production Capacity:: | 12m/min |
| Dimension(L*W*H):: | 8700*2230*1330mm | Voltage: | 380V 50Hz 3Phases |
| Rolling Thinckness:: | 0.3-1mm | Feeding Width:: | 1220mm, 900mm, 1200mm, 1000mm |
| Passive Discharge Bearing:: | 10T | Passive Discharge:: | Manual Tightening |
| Highlight: | 380V 50Hz Floor Deck Machine,6m/min Floor Deck Machine |
||

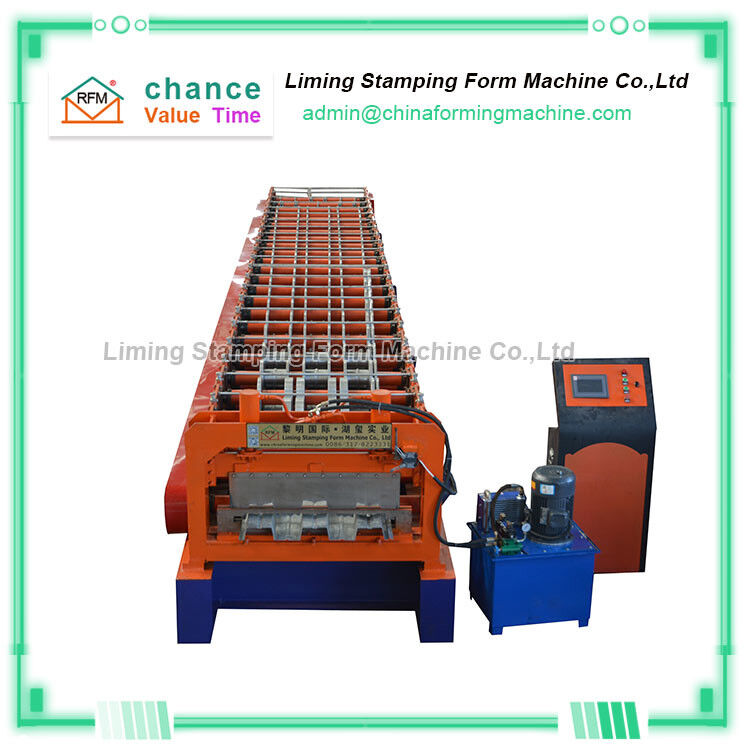

Galvanized 1025 Floor Floor Deck Forming Machine
The "galvanized 1025 Floor floor deck forming machine" is mainly composed of a feeding platform, a forming host, a forming and shearing device, a hydraulic station and a computer control system.
After completion, there is no need to dismantle the "galvanized 1025 Floor floor deck forming machine", which can effectively shorten the construction period.
The "galvanized 1025 Floor floor deck forming machine" embossing the surface of the profiled board to produce the greatest bonding force between the floor and the concrete, so that the two form a whole, with reinforcing ribs, so that the floor system has Higher load-bearing capacity.
"Galvanized 1025 Floor floor deck forming machine" uses galvanized sheet material as floor support. There is no need to decorate the ceiling separately, which can save a large part of the decoration cost for users. Therefore, it has been well received by many users.
Main parameters of Galvanized 1025 Floor Floor Deck Forming Machine
| Items | Specifications | |
| Material of coil | Material Width | 1250mm |
| Material Thickness | 0.4-0.7mm | |
| Uncoiler | 5 tons manual | |
| Forming system | Rolling Speed | 6-15m/min |
| Roller Stations | 14 stations | |
| Roller Material | 45# steel, Electroplating 0.02-0.05mm | |
| Material of shaft | 45 steel | |
| Shaft DIA | D76mm | |
| Main Motor Power | 15kw | |
| Hydraulic cutting Power | 5.5kw | |
| Cutting system | Material Of Cutting | CR12Mov |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase |
| Control System | PLC (Panasonic) | |
| Way Of Drive | 1.5 inch single chain |
