| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor8 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Applicable Industries:: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Retail, Construction Works , Advertising Company | After Warranty Service:: | Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Hydraulic Station Motor:: | 5.5kw | Molding Machine Line Speed:: | 8-10m/min |
| Dimension(L*W*H):: | 8700*2230*1330mm | Voltage: | 380V 50Hz 3Phases |
| Rolling Thinckness:: | 0.3-1mm | Feeding Width:: | 1220mm, 900mm, 1200mm, 1000mm |
| Passive Discharge Bearing:: | 10T | Length And Length Accuracy:: | ± 2mm |
| Highlight: | 880 Steel Deck Roll Forming Machine,2mm Accuracy Deck Roll Forming Machine,880 steel deck forming machine |
||

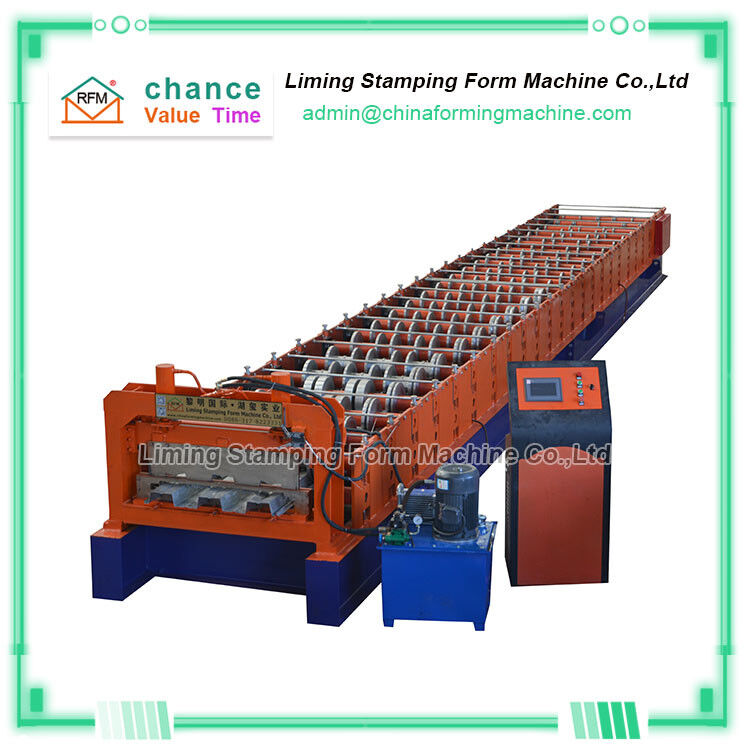

High Quality 880 Floor Deck Forming Machine
"High quality 880 floor deck forming machine" is mainly composed of decoiler, feeding platform, forming host, punching device, forming and cutting device, hydraulic station, computer control cabinet, etc.
Features of "High quality 880 floor deck forming machine":
1. "High quality 880 floor deck forming machine" has stable performance: steel plate decoiler, with uniform feed speed and high stability.
2. "High quality 880 floor deck forming machine" has high working efficiency: hydraulic synchronization and hydraulic punching system ensure working efficiency, precision and finished product quality.
3. The quality of the finished product of the "High quality 880 floor deck forming machine" is good: the floor produced is light in weight, high in strength, heavy bearing and good in performance.
The "High quality 880 floor deck forming machine" is operated or guided by experienced skilled workers, from the selection of raw materials, parts processing to assembly and inspection, and a dedicated service team has been established to ensure that users' problems can be effectively solved.
Main parameters of High Quality 880 Floor Deck Forming Machine
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2.Installation Dimension (L*W*H): | 17500mm*1200mm*1300mm |
| 3.Main motor power | 15KWx3(Siemens) |
| 4.Hydraulic station power | 4KW |
| 5. Hydraulic oil pump | 12.0 Mpa |
| 6.Thickness of material | 0.2mm~0.8mm |
| 7.Diameter of principal axis | Φ70-90mm |
| 8.Material expand width | 1000mm |
| 9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11.Controlling system | PLC |
| 12.Processing speed | 8-15m/min |
| 13.Processing precision within | 1.00mm (depend on design) |
| 14.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15.Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16.Roller station | 36 Rollers |
| 17.Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 7T |
