| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor10 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Hydraulic Motor Power:: | 37KW | Forming Steps:: | 18 |
|---|---|---|---|
| Hydraulic Station Motor:: | 5.5kw | Molding Machine Line Speed:: | 12-16m/min |
| Dimension(L*W*H):: | 16000*1800*1600mm | Voltage: | 380V 50Hz 3Phases |
| Rolling Thinckness:: | 0.8-1.6mm | Material Width:: | 1219mm |
| Passive Discharge Bearing:: | 10T | Length And Length Accuracy:: | ± 2mm |
| Highlight: | 15kw Floor Tiles Manufacturing Machines,CE Floor Deck Forming Machine,15kw Floor Deck Forming Machine |
||

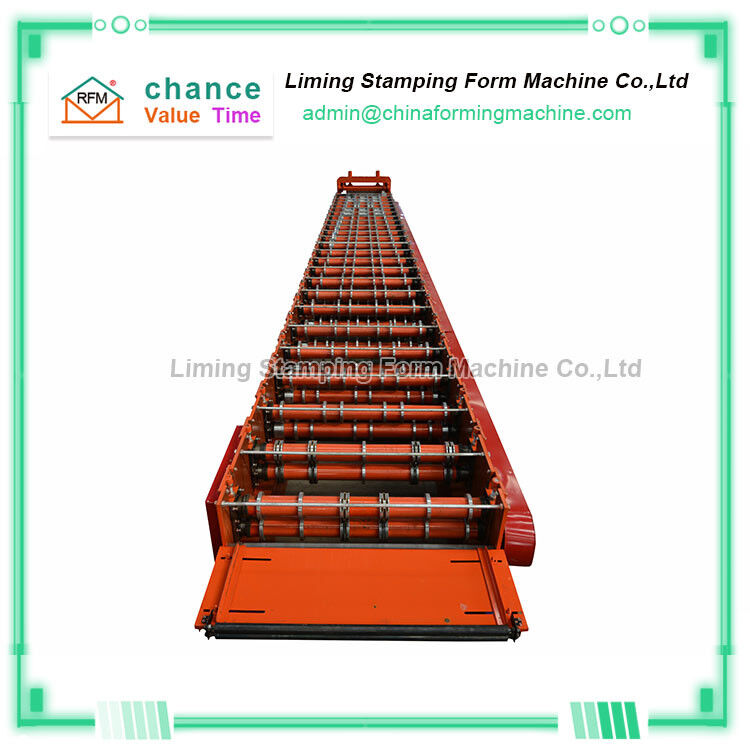

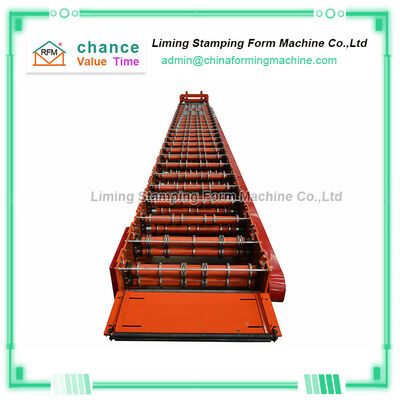

Full Specification Floor Deck Forming Machine
The floor produced by the "Full specification floor deck forming machine" meets the requirements for rapid construction of the main steel structure, and can provide a solid working platform in a short time, thereby ensuring the interests of customers.
The floor produced by the "Full specification floor deck forming machine" has two functions, one is used as wall panels and wall panels, and the other is used as a load-bearing structure.
When the floor deck produced by the "Full specification floor deck forming machine" is used as the house panel and wall panel of the factory, the amount of steel used per square meter is about 5 to 11 kg, and heating and insulation are usually not required.
When heat insulation is required, mineral wool board, glass wool, foam plastic, etc. can be used as heat insulation materials.
The floor produced by the "Full specification floor deck forming machine" is combined with concrete to form a composite floor, which can eliminate the wooden formwork and can be used as a load-bearing structure.
At the same time, in order to improve the bonding force between the profile steel plate produced by the "Full specification floor deck forming machine" and the floor slab and concrete, studs can be pre-welded or two-way reinforcing ribs can be welded on it. The steel plate can be suppressed.
Main parameters of Full Specification Floor Deck Forming Machine
| No. | Item | parameter |
| 1 | Machine size | 12800*2300*1500mm |
| 2 | Machine weight | 15000kg |
| 3 | Machine power | 15kw+2 |
| 4 | Hydraulic engine | 5.5kw |
| 5 | Roll speed | 014M/Min |
| 6 | Roll stations | 23 |
| 7 | Roller material | 45#steel |
| 8 | Effective width | 975mm |
| 9 | Feeding width | 1200-1280m |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 0.8-1.5mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
