| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor16 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Roller Material:: | 45# Steel With Quenching 60mm Shaft | Forming Stations:: | 28 Stations |
|---|---|---|---|
| Automatic:: | Plc Controlled, Full Automatic | Forming Speed:: | 8-20m/min |
| Dimension(L*W*H):: | 8mx0.88mx1m | Voltage: | 380V220V, 380V, 400V, 415V, 440V |
| Material Thickness:: | 0.8---1.2 Mm | Effective Width:: | 1250mm |
| Weight:: | 4.5t | Length And Length Accuracy:: | ± 2mm |
| Highlight: | 7T Floor Decking Forming Machine,28 Stations Floor Decking Forming Machine,HRC58 decking forming machine |
||

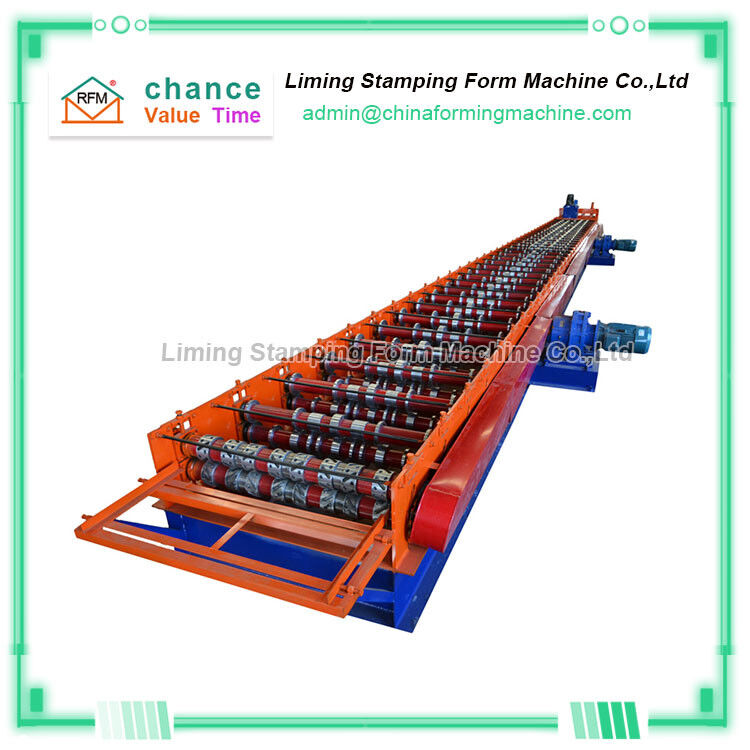

Competitively Priced Floor Deck Forming Machine
"Competitively priced floor deck forming machine" has the characteristics of fast construction, good flexibility, high bearing capacity and wide range of uses.
"Competitively priced floor deck forming machine" can provide a firm working platform in a short time, and can use multiple floors to lay special-shaped steel plates and layered concrete slabs for flow construction.
The ribs of the floor steel deck produced by the "Competitively priced floor deck forming machine" can place water, electricity and pipes to integrate the structural layer and pipes, thereby indirectly increasing the height of the floor or reducing the height of the floor. Buildings.
The floor produced by the "Competitively priced floor deck forming machine" improves the overall stability of the steel beam and the local stability of the upper flange during the use stage, and the appearance is neat and beautiful.
Main parameters of Competitively Priced Floor Deck Forming Machine
| Feeding rack | Manual tightening, passive feeding |
| Feeding rack load | 7T |
| frame | Welded with 400 steel |
| Feed rack guide form | Side slide |
| transfer method | Wall plate chain drive |
| vertical thickness | 18mm |
| Shaft diameter | ￠ 90㎜ |
| Roller material | High-quality 45 # steel quenched and quenched, hardness 50 ° -52 ° |
| Chain | 2 inch single row |
| Forming machine motor power | 11KW * 2 |
| Forming speed | 8m / min |
| Forming rows | 24 rows |
| Hydraulic station motor | 4kw |
| Hydraulic station oil pump | Gear pump |
| Cut off method | Hydraulic shear |
| Shear blade material | 30mm thick Cr12 blade |
| Shear blade heat treatment | HRC58 ° -60 ° |
| Rolling thickness | 0.8-1.5MM |
| Length tolerance | ± 2mm |
| Control System | Xinjie PLC |
