| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO、BV |
| Model Number: | LM-floor18 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60set/Year |
| Cutting Type:: | Hydraulic Cutting Off | Forming Stations:: | 23 Steps |
|---|---|---|---|
| Suitable Material:: | Galvanized Steel, GI | Forming Speed:: | 8-20m/min |
| Dimension(L*W*H):: | 8mx0.88mx1m | Voltage: | 380V220V, 380V, 400V, 415V, 440V |
| Material Thickness:: | 0.8---1.2 Mm | Effective Width:: | 1250 |
| Shaft Diameter:: | 75mm And 95mm | Driving Motor:: | 15Kw |
| Highlight: | W1250mm Floor Tile Making Machine,15Kw Deck Floor Roll Forming Machine,15Kw Floor Tile Making Machine |
||

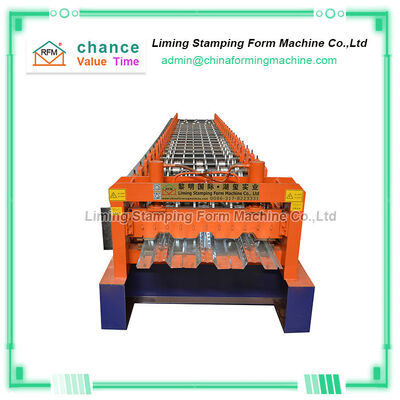

1250mm Width Floor Deck Roll Forming Machine
1. "1250mm width floor deck roll forming machine" total length: 10.5m wide 1.5m high 1.2m
2. "1250mm width floor deck roll forming machine" version width: effective width 344-688
"1250mm width floor deck roll forming machine" has an unfolded width of 1.25 meters, a peak height of 50, and a peak distance of 342
3. Weight of "1250mm width floor deck roll forming machine": no less than 13.5T 450 I-beam frame
4. "1250mm width floor deck roll forming machine" shaft diameter material: shaft ￠ 100 solid shaft Material 45# steel quenched and tempered HB220-250, 6319 bearing hole ￠ 95
5. Material and treatment of "1250mm width floor deck roll forming machine": the press wheel is G chrome 15 bearing steel, hardness 58-62 degrees, polished hard chrome plating 0.05mm, shaft and hole fit without loose clearance, the front version is concave . pit. The wallboard thickness is 18mm.
Main parameters of 1250mm Width Floor Deck Roll Forming Machine
| Part details | Item Name | Specification |
| Manual decoiler | Carrying capacity | 5 tons |
| Raw coil | Coil material | GI |
| Feeding width | 1250 mm | |
| Thickness | 1.2-1.5 mm | |
| Forming part | Roller station | 28 station |
| Material of roller | GCR 15 | |
| Shaft Diameter | 95mm | |
| Material of shaft | 45# steel with 0.05mm chrome | |
| Weight of machine | About 10 tons | |
| Machine length | About 12 m | |
| Productivity | 8-15 m/min | |
| Cutter | Material of cutter | Cr 12 |
| Operation | Hydraulic cutting | |
| Power | Operation | Chain transmission |
| Driving way | 2 inch chain | |
| Voltage | 380V 50Hz 3 phases | |
| Control syestem | Control | PLC |
| Motor | 15*2 kw |
