| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Ladder1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 450set/Year |
| Type:: | Tile Forming Machine | Voltage:: | 380V 50Hz 3phases |
|---|---|---|---|
| Applicable Industries:: | Manufacturing Plant | Dimension(L*W*H):: | 6500mm*1500mm*1500mm |
| Shaft Material:: | 45# High Grade Steel | Certification: | CE、BV、ISO |
| Power:: | 15kw | Pump Station:: | 5.5kw |
| Forming Stations:: | 15 | ||
| Highlight: | 3p carriage board roll forming machine,15kw carriage board roll forming machine,BV carriage board roll forming machine |
||

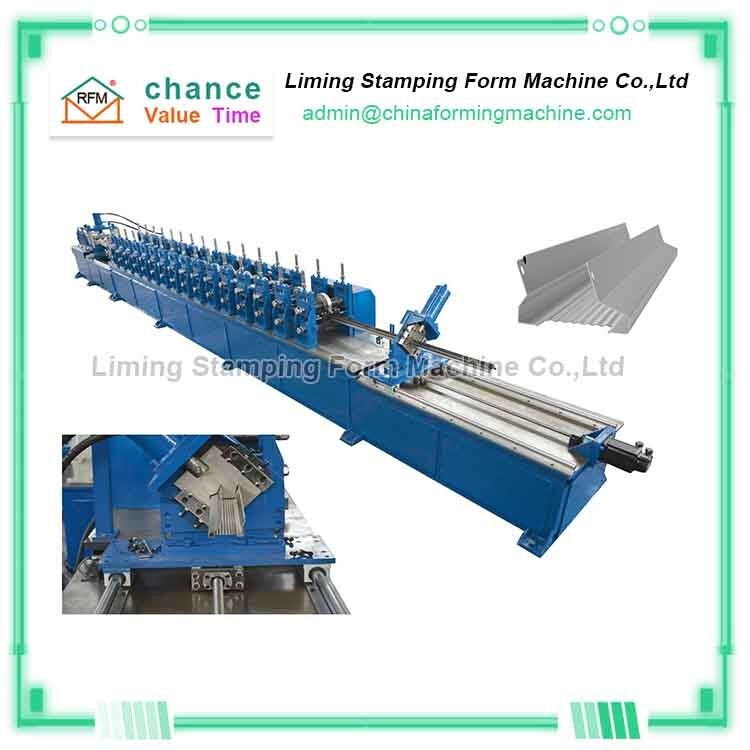

Easy-to-install Ladder Plate Roll Forming Machine is an equipment used to produce Ladder Plates.
Ladder plate roll forming machine is composed of uncoiling device, feeding device, punching device, forming host, shearing device and receiving device. The whole machine is controlled by plc control system, which is simple and easy to operate, which can help you save multiple production processes and Labor costs.
The ladder plate roll forming machine adopts high-precision Gr12 forming wheels to ensure the hardness and toughness of the forming wheels. At the same time, it is also equipped with an integrated cast middle plate, which makes the middle plate and the equipment base tightly connected to ensure the stability of the whole host. Help you to continuously and stably produce ladder board products, and the products produced are accurate in size and easy to install.
If you need to customize the ladder plate roll forming machine, you only need to provide the drawings, and our design team with 20 years of cold-formed manufacturing experience will design a number of design plans for you to choose from.
If you are afraid that you will not be able to operate after purchasing the ladder board roll forming machine, we can ask you to provide one-to-one video teaching to ensure that you can operate it proficiently and quickly bring you benefits.
Technical parameters ofEasy-to-install Ladder Plate Roll Forming Machine
| Roller Material | Cr12 Steel,after rough turning then NC Lathe |
| Shaft diameter | 50mm |
| Shaft material | 45# steel with forging treatment |
| Motor Power | Hydraulic 5 5KW |
| Reducer Type | 250# |
| Production Speed | 30-40m/min(include forming/utting) |
| Transmission | Gear and Sprocket |
| Cutting Device | Servo tracking cutting |
| Cutting Motor | 5.5KW |
| Cutting Mold | Cr12MoV |
