| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Ladder3 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 450set/Year |
| Type:: | Tile Forming Machine | Voltage:: | 380V 50Hz 3phases |
|---|---|---|---|
| Applicable Industries:: | Manufacturing Plant | Dimension(L*W*H):: | 7500mm*1200mm*1500mm |
| Shaft Material:: | 45# High Grade Steel | Certification: | CE、BV、ISO |
| Power:: | 15kw | Pump Station:: | 5.5kw |
| Forming Stations:: | 15 | ||
| Highlight: | BV Certification steel roll formers,15KW steel roll formers,15KW roll forming equipment |
||
Ladder plates are mostly used for the construction of middle and high-end ladder plates in daily and work, and can also be used for the steps of herringbone ladders, folding ladders and telescopic ladders. Because the ladder board has strong load-bearing capacity and pressure resistance, strong flexibility, not easy to deform, high temperature resistance, corrosion resistance, and convenient installation and easy operation, it is deeply loved by people.

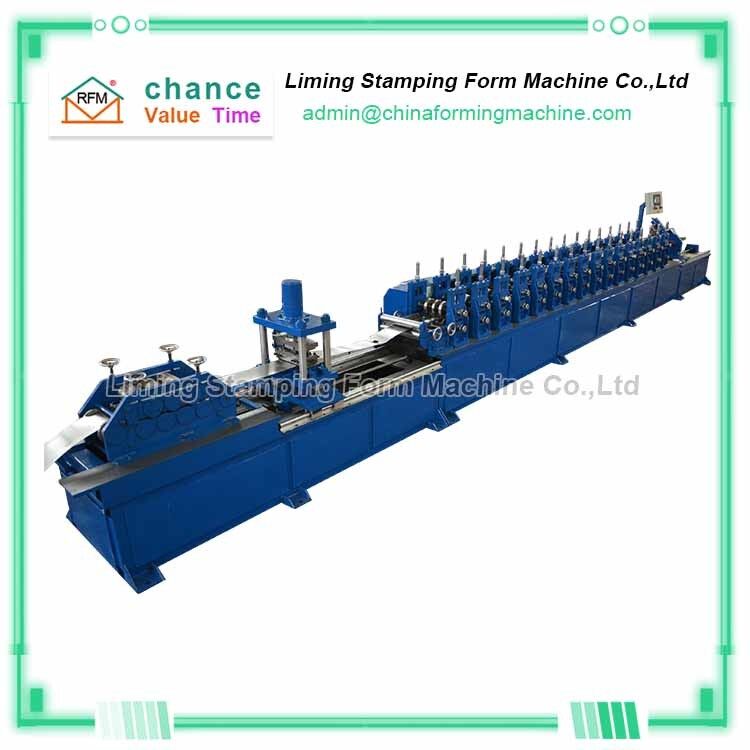

The ladder plate forming machine adopts a new type of integrated casting middle plate, which ensures the stability and compressive resistance of the ladder plate forming machine. The ladder plate forming machine is also equipped with an Omron encoder for length measurement to ensure that the length of each product is constant. Can help you save the secondary processing.
The ladder board forming machine is also equipped with servo die cutting, which realizes the non-stop shearing of the ladder board forming machine and can help you save a lot of time. At the same time, the ladder board products that are cut by the mold have accurate dimensions and neat cross-sections. It is directly used for installation and use, thereby helping you to improve the efficiency of installation.
Ladder board forming machine can be customized production, our company has a professional design team, can design your high-precision ladder board forming machine according to the drawings you provide, and we will also provide you with a ladder board forming machine operation video to help you quickly Skilled in operating the ladder board forming machine.
Technical parameters of New generation easy to install ladder board forming machine
| Roller Material | Cr12 Steel,after rough turning then NC Lathe |
| Shaft diameter | 50mm |
| Shaft material | 45# steel with forging treatment |
| Motor Power | Hydraulic 5 5KW |
| Reducer Type | 250# |
| Production Speed | 30-40m/min(include forming/utting) |
| Transmission | Gear and Sprocket |
| Cutting Device | Servo tracking cutting |
| Cutting Motor | 5.5KW |
| Cutting Mold | Cr12MoV |
