| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 5.1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.3-1.0mm |
|---|---|---|---|
| Dimension(L*W*H): | 7500*1700*1600Mm | Warranty: | 1.5 Years |
| Certification: | CE、BV、ISO | Voltage: | 380v 50Hz |
| Core Components: | Motor, Pump, PLC | Weight: | 10T |
| Highlight: | cable tray roll forming machine plc,100mm cable tray roll forming machine,punching rollform equipment |
||
Size-adjustable cable tray punching forming machine has good sales in the industry
We are a cable tray punching machine manufacturer. Our company has a professional design, manufacturing, sales, and after-sales team that can help customers solve all problems about cable tray punching machines. At the same time, our company also produces cable tray products. Meet the needs of customers using cable tray products. If you need to produce cable tray forming machine, we can provide it for you.
Technical parameters of Size-adjustable cable tray punching forming machine has good sales in the industry
|
Name
|
cable tray making machine
|
|
Decoiler
|
Electric feeding, hydraulic tightening
|
|
Roller material
|
GR15 steel
|
|
Coil ID
|
φ508mm/φ610mm
|
|
Control system
|
PLC System
|
|
Hydraulic system power
|
3kw Shaft diameter: φ190mm Tighten cylinder diameter: φ200mm
|
|
Hydraulic system oil pump
|
vane pump Hydraulic system solenoid valve brand: Beijing huade
|
|
Cutting blade material
|
Cr12Mov steel
|

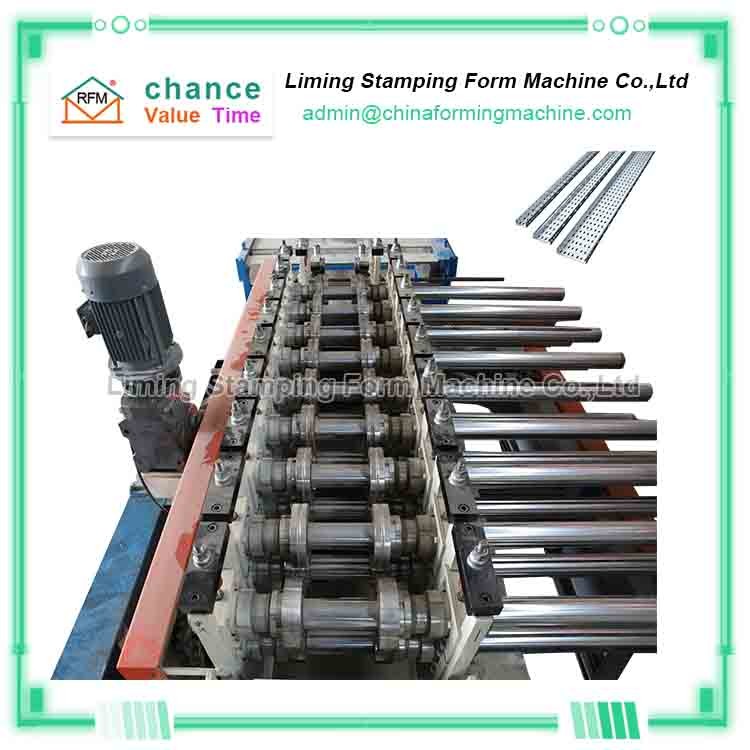

The cable tray forming machine is divided into uncoiling module-punching module-rolling small side module-large side bending module-splicing module. The whole machine is controlled by the PLC electronic control system, and only one person can complete the entire production. Process, which can help you save a lot of labor costs.
The cable tray forming machine is also equipped with an adjustable punching device, so that the hole distance of the cable tray can be adjusted at will to meet the purpose of easy installation of cable tray products.
The width of 100-600 does not need to be customized production, because our cable tray forming machine has a width of 100-600 that can be adjusted at will to meet your needs for multiple specifications of cable trays.
