| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 5.4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 1.0mm |
|---|---|---|---|
| Production Capacity: | 20M/Min | Warranty: | 2 Years |
| Certification: | CE BV STV ISO | Voltage: | 380V |
| Core Components: | Motor, Pump, PLC | Weight: | 10T |
| Highlight: | roll forming line liming,1.0mm roll forming line,plc rollform equipment |
||
Industry Leading Technology 1.0mm Wire Slot Machine LiMing
The cable bridge is divided into trough type, tray type, ladder type, net format and other structures, which are composed of brackets, supporting arms and installation accessories. The bridge frame in the building can be erected independently or attached to various buildings and pipe gallery supports. Because of its simple structure, beautiful appearance, flexible configuration and convenient maintenance, it is deeply loved by people
Technical parameters of Industry Leading Technology 1.0mm Wire Slot Machine LiMing
| No | Item | Parameter |
| 1 | Model | Punching and cutting before forming |
| 1 | Forming Speed |
20 m/min(depend on quantity of punching) |
| 2 | Forming station | 17 groups |
| 3 | Main Power | 15KW moving motor |
| Pump station Power | 5.5 KW | |
| 4 | Total Weight | About 10t |
| 5 | Voltage | 380v,60hz,3p |
| 6 | Diameter of shaft | 90 mm solid |
| 7 | Installation Size | About 30 *2 M *3 |
| 8 | Middle Plate | Double row 20mm middle plate |
| 9 | Main frame system | 400 mm channel steel structure with tempering heat treatment |
| 10 | Measuring accuracy | Precision 3m +/-3mm,with frequencyer |
| 11 | Transmission | By 1 inch double row chain. |
| 1 | Punching machine | 160T with servo feeding system |
| 2 | Molds | 1 set |

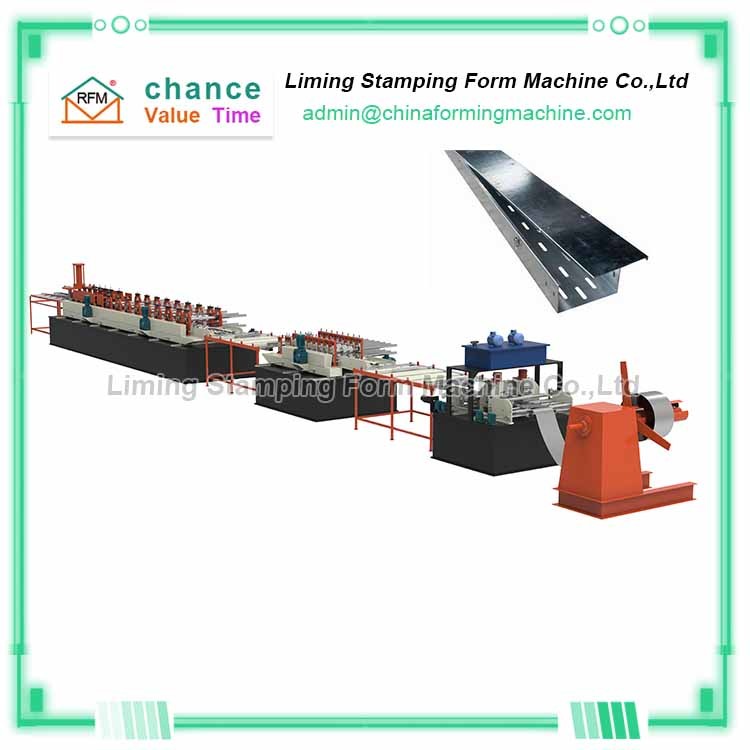

The wire slot machine is composed of an uncoiling device, an adjustable punching device, a small-side bending device, a large-side bending device, and a shearing device. The whole machine is controlled by PLC electronic control. Simple operation can help you save a lot of manpower.
The trunking machine developed by Liming Pressing Machinery Co., Ltd. adopts adjustable punching devices on both sides, which can meet the needs of different hole positions, so as to facilitate the installation of cable trays and facilitate the transportation of cable trays, which can help you quickly Dominate the market.
In order to meet the needs of customers, the trunking machine produced by our company can be matched. Customers can purchase a certain production module of the trunking machine according to their own raw materials to complete the production of cable trays. If you do not have experience in producing cable trays, we Can provide you with a variety of production solutions to meet your needs, so as to help you solve the problem of producing cable tray products
