| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 5.5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.3-1.0mm |
|---|---|---|---|
| Production Capacity: | 20M/Min | Warranty: | 1 Years |
| Certification: | CE BV STV ISO | Voltage: | 380V60hz |
| Core Components: | Motor, Pump, PLC | Weight: | 10T |
| Highlight: | 1.0mm cable tray manufacturing machine,20m/min cable tray manufacturing machine,adjustable rollform equipment |
||

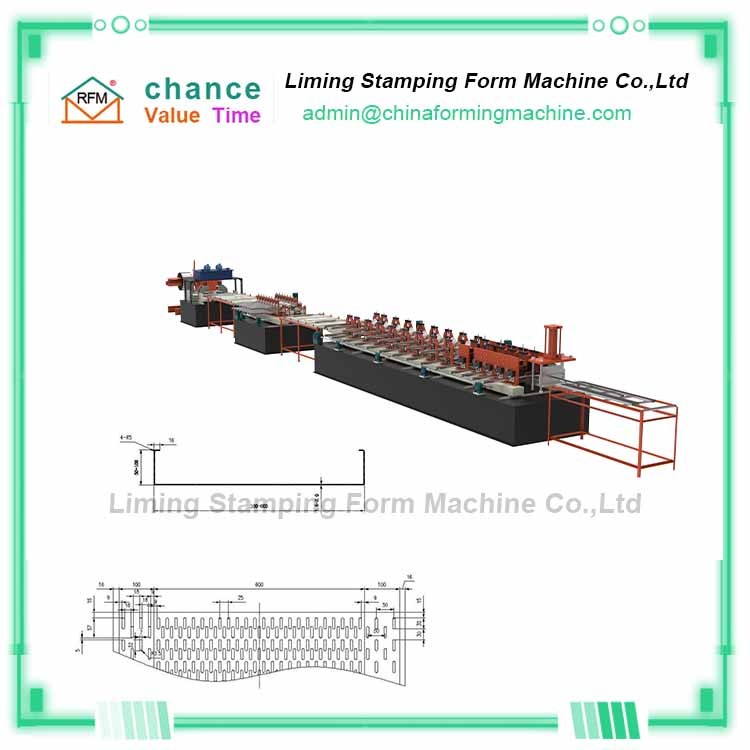

The Size Of The 20m/Min Cable Tray Manufacturing Machine Used In The Project Is Adjustable
Liming Pressing Machinery Co., Ltd. is a company with 25 years of rich experience in manufacturing cable tray manufacturing machines. At the same time, our company has professional high-tech software and excellent sales, production, design and after-sales teams, which can help you solve all about cable tray manufacturing machines. If you need to produce cable trays, we can provide you with a cable tray manufacturing machine
Process flow of cable tray manufacturing machine:
Uncoiling--feeding--punching--small-side bending--large-side bending--shearing--rewinding
Technical parameters of The Size Of The 20m/Min Cable Tray Manufacturing Machine Used In The Project Is Adjustable
| No | Item | Parameter |
| 1 | Model | Punching and cutting before forming |
| 1 | Forming Speed |
20 m/min(depend on quantity of punching) |
| 2 | Forming station | 17 groups |
| 3 | Main Power | 15KW moving motor |
| Pump station Power | 5.5 KW | |
| 4 | Total Weight | About 10t |
| 5 | Voltage | 380v,60hz,3p |
| 6 | Diameter of shaft | 90 mm solid |
| 7 | Installation Size | About 30 *2 M *3 |
| 8 | Middle Plate | Double row 20mm middle plate |
| 9 | Main frame system | 400 mm channel steel structure with tempering heat treatment |
| 10 | Measuring accuracy | Precision 3m +/-3mm,with frequencyer |
| 11 | Transmission | By 1 inch double row chain. |
| 1 | Punching machine | 160T with servo feeding system |
| 2 | Molds | 1 set |
Features of the cable tray making machine.
1. Hydraulic unwinding makes the roll unwinding speed consistent with the production speed, which can perfectly support and prevent the roll off, which can help you produce safely and efficiently.
2. The punching holes on both sides can be adjusted, and the hole positions can be adjusted at will, which can meet different specifications of products
3. The coaxial molding host can produce a variety of models of cable trays, the molding is more stable, and the size is more accurate
