| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Bridge 5.5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability: | 450set/Year |
| Showroom Location:: | Pakistan, India, Russia | Rolling Thinckness: | 0.3-1.0mm |
|---|---|---|---|
| Production Capacity: | 0-20M/Min | Warranty: | 1.5 Years |
| Certification: | CE BV STV ISO | Voltage: | 380V60hz |
| Core Components: | Motor, Pump, PLC | Effective Size: | 100-600mm |
| Highlight: | cable bridge rollform equipment,perforated steel rollform equipment,multiple rollform equipment |
||

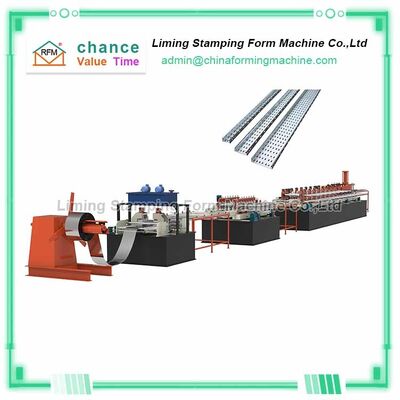

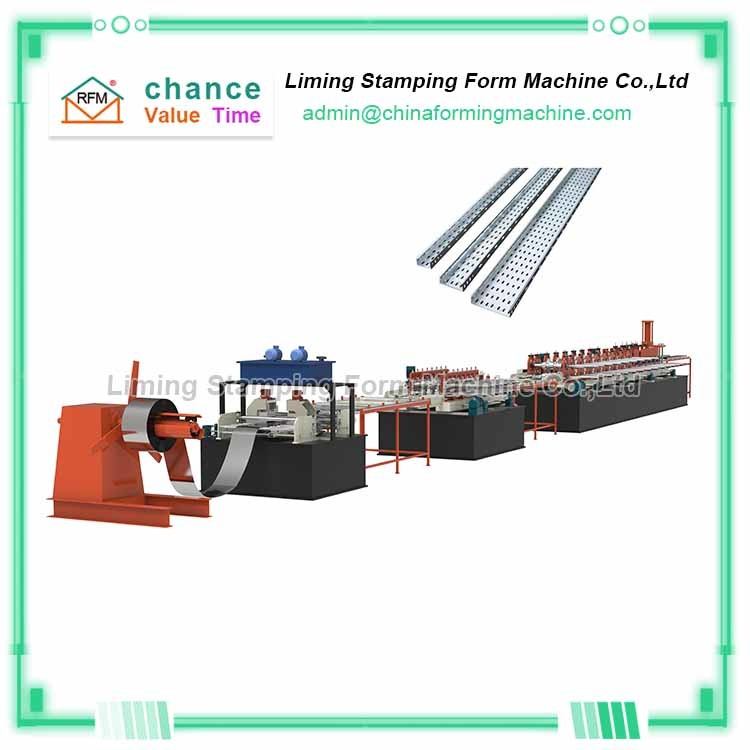

One machine with multiple perforated steel cable bridge machines 220v50hz
With the development of technology and data, the perforated steel cable tray has played a vital role in the electrical and data transmission system. Because the perforated steel cable tray has the advantages of corrosion resistance, easy installation, strong load-bearing capacity and long life, it has been People's unanimous praise, we can provide you with a cable tray forming machine.
Technical parameters of The Size Of One machine with multiple perforated steel cable bridge machines 220v50hz
|
Decoiler:
|
Electric feeding, hydraulic tightening
|
|
Loading weight:
|
5T
|
|
Coil ID:
|
φ508mm/φ610mm
|
|
Coil expansion range:
|
φ450-φ530mm/φ630mm
|
|
Motor power:
|
5.5kw
|
|
Hydraulic system power:
|
3kw Shaft diameter: φ190mm Tighten cylinder diameter: φ200mm
|
|
Hydraulic system oil pump:
|
vane pump Hydraulic system solenoid valve brand: Beijing huade
|
The perforated steel cable bridge machine adopts an advanced digital electronic control system, which realizes the interconnection of man and machine, makes the production of perforated steel cable bridge more convenient, can help you save a lot of time and production technology, and make your production change More efficient
The perforated steel cable tray machine is also equipped with a width adjustment system that is rare in the market. With this system, you can produce any type of cable tray products between 100-600mm molding width, which can help you expand the cable tray market. At the same time, it also saves you the cost of purchasing multiple models of perforated steel cable bridge machines.
The cable tray products produced by the perforated cable tray machine not only meet the functionality of the perforated steel cable tray, but also realize the easy installation and beautiful appearance of the cable tray.
