| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-Carriage 10.29 6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 40 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Voltage: | 380v 3ph 50hz | Warranty: | 1 Years |
|---|---|---|---|
| Production Capacity: | 8-15m/min | Place Of Origin: | Hebei, China |
| Dimension(L*W*H): | 10*1.5*1.2m | Certification: | CE、BV、ISO |
| Rolling Thinckness: | 0.3-1.5mm | Motor Brand: | Shanghai Lichao |
| Cutter Material: | Cr12/Cr12 Mov | ||
| Highlight: | panel rollformers machine,220v panel roll forming machine,3mm thick panel roll forming machine |
||

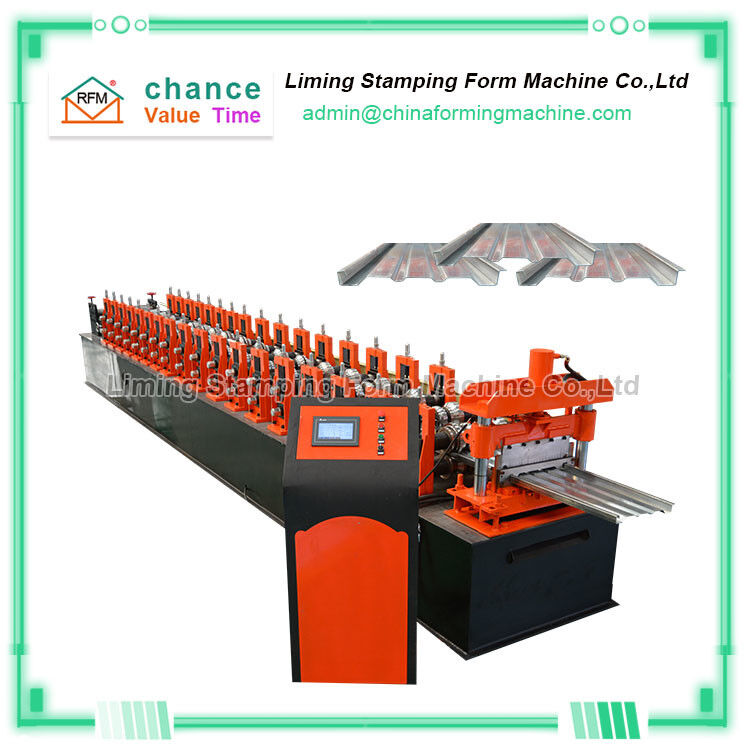

0.2mm-6mm 20m/min thick container side plate forming machine
The container side panel forming machine is an equipment used to produce container side panels
Process flow of container side panel forming machine:
Uncoiling--feeding adjustment--cold forming--hydraulic automatic cutting--finished product receiving
Technical parameters of 0.2mm-6mm 20m/min thick container side plate forming machine
|
1
|
Suitable to process
|
Color steel plate
|
|
|
2
|
Width of the plate
|
1220mm
|
|
|
3
|
Rollers
|
14-18rows
|
|
|
4
|
Dimensions
|
10*1.5*1.2m
|
|
|
5
|
Power
|
7.5+4kw
|
|
|
6
|
Thickness of the plate
|
0.3-1.2mm
|
|
|
7
|
Productivity
|
8-15m/min
|
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
|
9
|
Weight
|
8 T
|
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
|
11
|
Rolling material
|
Carbon Steel 45#
|
|
|
12
|
Material of the cutting plate
|
Cr12
|
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
|
14
|
Control system
|
PLC control
|
|
|
15
|
Side panel of machine
|
14mm
|
|
|
16
|
Main structure of the machine
|
350 H steel
|
|
Features of Container Side Plate Forming Machine
The container side plate forming machine is a customized equipment that can integrate many processes required for production according to the different needs of customers, such as automatic changer, cutting and stamping systems, as well as complex welding, riveting, bending, handling and packaging, etc. System, these will bring huge added value to increase production capacity.
Its container side plate forming machine: the material of rolling materials includes cold-rolled steel strip, hot-rolled steel strip, pickling plate (steel strip), color steel plate (steel strip), galvanized steel strip and stainless steel strip, etc.; professional manufacturing capability Processing 0.2mm-6mm thick metal plates; the dimensional accuracy of the produced profiles can be controlled within 0.05mm, which has a leading position in the domestic industry.
The overall design and installation quality of the container side panel forming machine conform to the relevant national specifications, the equipment is beautiful in appearance, the structure is reasonable and the technology is installed in place according to the standard process.
The container side plate forming machine adopts PLC automatic fixed-length forming and cutting, with accurate fixed-length positioning, beautiful and neat plate shape, no deformation, and no burrs during cutting.
The container side panel forming machine has low equipment noise and high working efficiency.
