| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Place Of Origin:: | Hebei, China | Tile Type:: | Colored Glaze |
|---|---|---|---|
| Production Capacity:: | 4-5m/min | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.2-0.8mm | Key Selling Points:: | Easy To Operate |
| Cutting Blade Material::: | Cr12 | Machinery Test Report:: | Provided |
| Highlight: | 5m/min Sandwich Panel Production Line,Easy Operate Sandwich Panel Production Line,5m/min sandwich panel roll forming machine |
||

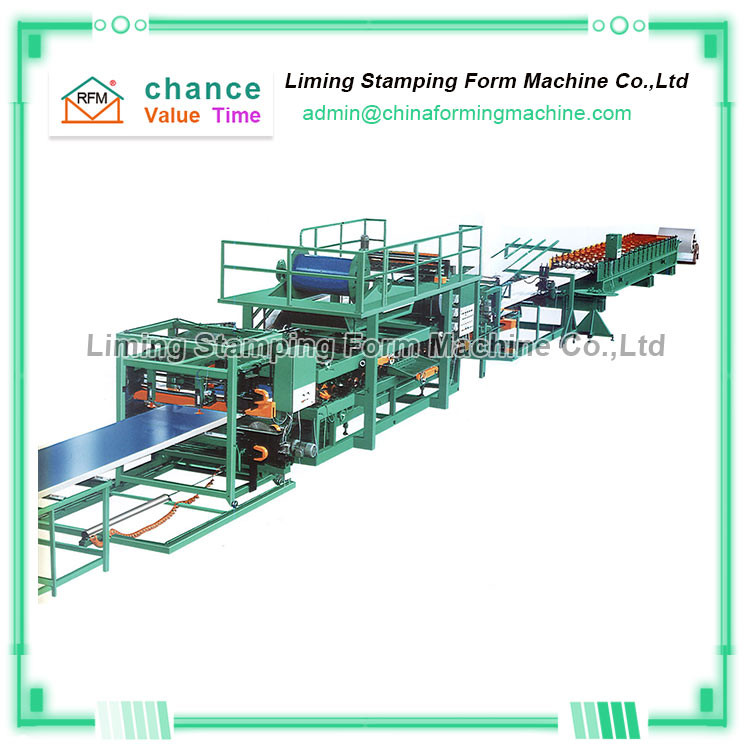

High Strength Foam Sandwich Panel Roll Forming Machine
"High strength foam sandwich panel roll forming machine" is a special production equipment for new building materials. Its main function is to compound colored steel on thicker and lighter core material EPS (polystyrene/foam) board or rock wool board.
1. Calibration equipment: "High strength foam sandwich panel roll forming machine" is equipped with two sets of calibration equipment. The upper correction mechanism adopts a large-diameter stainless steel drum with adjustable width. The lower correction device adopts thread adjustment, which is quick and easy.
2. Electric heating device: The host of the "High strength foam sandwich panel roll forming machine"is equipped with 6 sets of infrared electric heating devices, so that the equipment can produce high-quality composite panels at a lower temperature.
3. Dust collection device: "High strength foam sandwich panel roll forming machine" uses an exhaust fan to suck the wood chips into the dust collection device during the production process.
4. Electrical control device: The electrical control of the main machine of the "High strength foam sandwich panel roll forming machine" consists of an AC contactor and a frequency converter. The speed of the host and glue pump is controlled by frequency conversion. It can also form a synchronization mechanism with the corrugator to achieve speed uniformity between the two. Provide guarantee for the production of high-quality products.
Technical parameters of High Strength Foam Sandwich Panel Roll Forming Machine
| Main technical parameter | |
| Size: | 45000mmx4500mmx2700mm |
| Working speed: | 4500mm/min |
| Total power: | 32KW |
| Working voltage: | 380V |
| Density of EPS : | > 18kg/m3 |
| Suitable thickness of panel: | 0.3-0.8mm |
| Thickness of inner side: | 20-30mm |
| Core material: | EPS, Rock wool |
| Suitable working temperature: | about 25 °C |
| Feature and usage: | |
| 1. Operation speed of Sandwich Panel production line is steeples computer-controlled to realize the stable operation speed and simple operation of the production line. | |
| 2. Length of the Sandwich Panel production line can be controlled by the computer system based on the user’s requirements. The computer system has precise orientation and has timed display on the touch screen. And it has automatic counting and correcting. | |
| 3. Multiple functions: Besides corrugated sandwich panels, this line can be used to produce simple corrugated sheets, and sandwich panels. | |
| 4. Shapes of the corrugated compound plates can be designed and modified according to user's requirements so as to satisfy needs of different users. | |
| 5. It is the necessary equipment for producing the roof panels and wallboards for factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, civil construction, stadium, cold storage, etc | |
