| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type:: | Pu Panel Press Machine | Tile Type:: | Colored |
|---|---|---|---|
| Production Capacity:: | 0-6m/min | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.2-0.8mm | Key Selling Points:: | Easy To Operate |
| Cutting Blade Material::: | Cr12 | Voltage:: | 380v 50Hz |
| Highlight: | EPS Sandwich Panel Production Line,Sturdy Sandwich Panel Production Line |
||

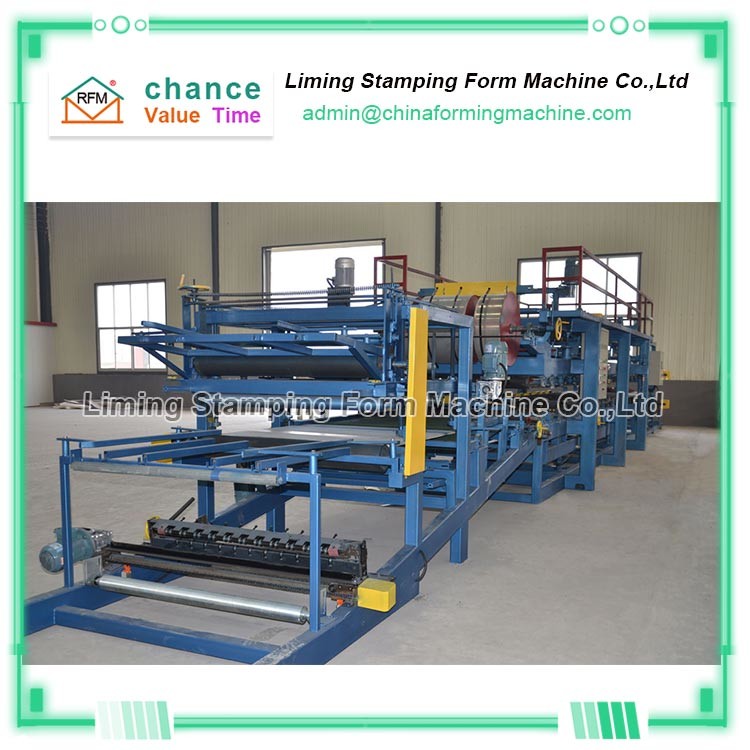

Sturdy EPS Sandwich Panel Roll Forming Machine
The production line of "Sturdy EPS Sandwich Panel roll Forming Machine" adopts advanced production technology. It integrates gas, electricity and machinery. It is a special mechanical equipment for processing color steel insulation sandwich panels.
The working speed of "Sturdy EPS Sandwich Panel roll Forming Machine" adopts frequency conversion stepless speed regulation, which can be mixed into the corrugated composite board at a time. The complete assembly line includes unwinding mechanism, pressing mechanism, composite mechanism (crimping, bonding, heating, laminating, crimping, grooving, trimming, pneumatic, automatic cutting).
"Sturdy EPS Sandwich Panel roll Forming Machine" is a production plant, warehouse, etc. Indispensable equipment for panels and walls.
"Sturdy EPS Sandwich Panel roll Forming Machine" is suitable for colored steel, aluminum, stainless steel, etc. as the outer composite outer layer material.
Technical parameters of Sturdy EPS Sandwich Panel Roll Forming Machine
| Suitable to Process | Color steel sheet Galvanized sheet Iron sheet | |||
| Width of raw material | 1000mm/1200mm/12500mm (according to customer requirements) | |||
| Rollers | customized | |||
| Dimensions | About 17500*1550*1500mm | |||
| Thickness of sheet | Max 0.8mm | |||
| Material of cutting blade | Cr12 | |||
| Diameter of the roller | customized | |||
| Voltage | 380V(Customized according to customer requirements ) | |||
| weight | About 8T | |||
| Productivity | 5-10m/min | |||
| Control system | PLC control | |||
