| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-sandwich7 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Applicable Industries:: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Tile Type:: | Colored |
|---|---|---|---|
| Production Capacity:: | 0-6m/min | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Dimension(L*W*H):: | 30000*3000*2800mm |
| Cutting Blade Material::: | Cr12 | Voltage:: | 380v 50Hz |
| Highlight: | Insulation Eps Sandwich Panel Line,6m/Min Equipment For Sandwich Making,6m/Min Eps Sandwich Panel Line |
||

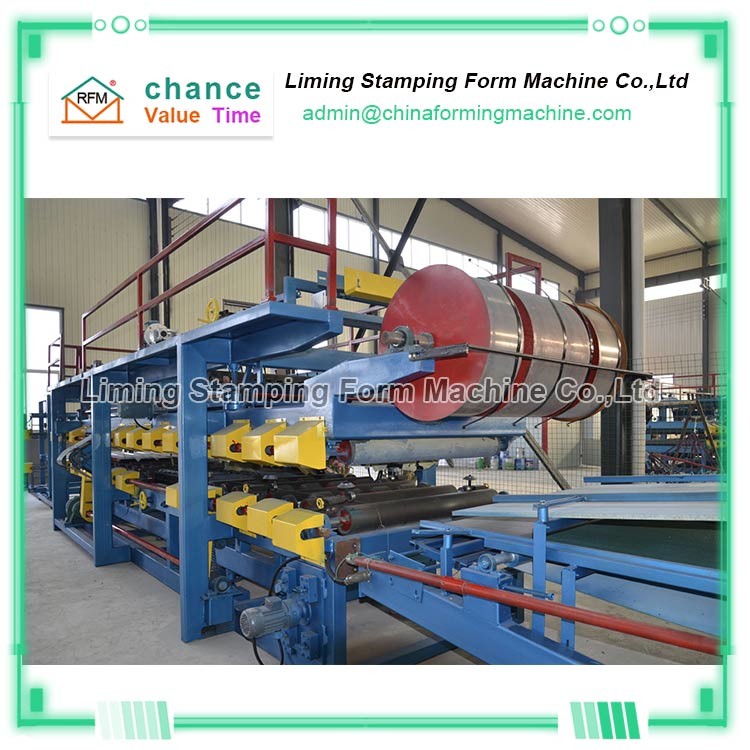

Color Steel Insulation Sandwich Panel Roll Forming Machine
The "Color steel insulation sandwich panel roll forming machine" combines the advanced production technology of the pressing machine and the sandwich panel machine. It can be mixed into various sandwich panels at one time, thus overcoming the shortcomings of traditional panels that are pressed first and then mixed manually.
The pressing machine and laminating machine of the "Color steel insulation sandwich panel roll forming machine" can be produced independently.
The forming machine part of the "Color steel insulation sandwich panel roll forming machine" is composed of a loading and unloading system, a forming body and a cutting device.
The sandwich panel machine part of the "Color steel insulation sandwich panel roll forming machine" includes loading and uncoiling, feeding, beading, gluing, heating, compounding, crimping, flanging and tongue and groove, slotting, trimming, pneumatic and automatic Cutting, industrial computer control system.
Technical parameters of Color Steel Insulation Sandwich Panel Roll Forming Machine
| 1. Size of sheet (mm):1200mm |
| 2. Working speed:10—14m/min |
| 3. Roller station:16 stations |
| 4. Diameter of roller:75mm |
| 5. Material of rolls:45#,polished and coated with chrome |
| 6. Headstock:High quality 45# high carbon steel , 6.Roller diameter:Ф75mm |
| 7. Main power:7.5 kw |
| 8. Hydraulic station motor power:11kw |
| 9. Hydraulic pressure: 15Mpa |
| 10. Electrical control system: PLC control (Panosonic) |
| 11. Dimension: 7300×1600×1200mm |
| 12. Material of cutting: Cr12Mov |
| 13. Thickness: 0.3 mm---0.8mm |
| 14. Tolerance of length:3m±1.5mm |
| 15. Weight: 6.5Ton 16.Dimension: 8500 |
