| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 5.2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 2 Years | Weight: | 8 Ton |
|---|---|---|---|
| Voltage: | 380V.50HZ.3Phase | Tickness Of Coil: | 1.5mm-3mm |
| Main Power: | 18.5 KW | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Structure: | 350H Beam | Roduction Capacity: | 10-30M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | Place Of Origin: | Hebei, China |
| Highlight: | 18.5kw highway guardrail roll forming machine,3mm highway guardrail roll forming machine,gearbox transmission guardrail roll forming machine |
||

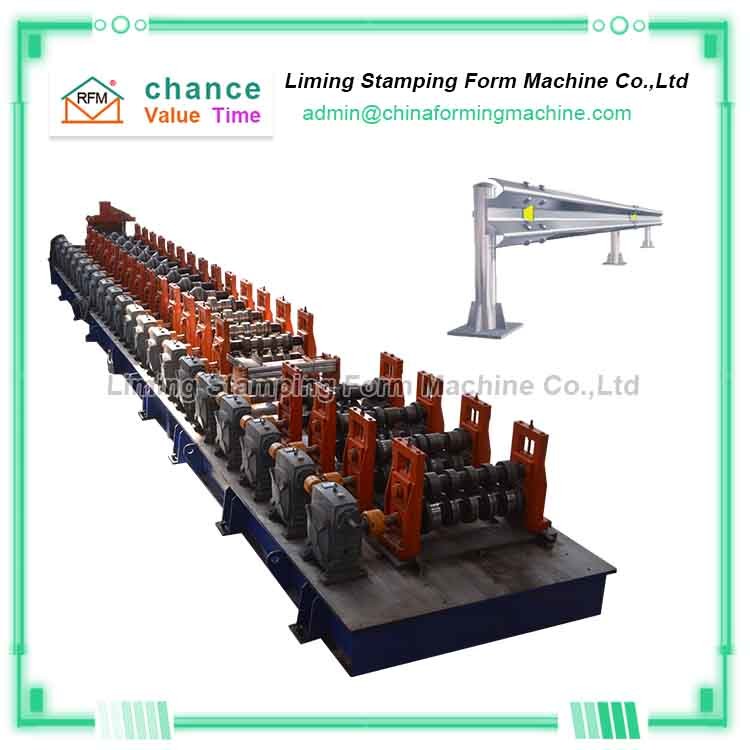

The Best-Selling 18.5kw3mm Highway Guardrail Forming Machine In The Industry
The highway guardrail products produced by the highway guardrail forming machine developed by Liming Pressing Machinery Co., Ltd. have excellent corrosion resistance, beautiful appearance, simple and convenient, novel and beautiful appearance. It is generally applicable to the construction of safety protection projects of expressways, first- and second-level roads, provincial and county roads, rural roads, scenic spots, and large parking lots.
Operation process of Liming Company's high-speed guardrail forming machine:
Uncoiling-Punching-Feeding Straightening-Roll Forming-Fixed Length Shearing-Rewinding
technical parameter of The Best-Selling 18.5kw3mm Highway Guardrail Forming Machine In The Industry
| Equipment presidents | About 18m | Width | 0.6m | Height | 1.2m |
| Equipment weight | About 18 tons | ||||
| Transmission way | Chain transmission or gear box transimission | ||||
| roller material | high grade 45#steel ,hard chrome 0.05 heated,hard plated and quenched | ||||
| shaft material | high grade 45#steel ,hard chrome 0.05 heated,hard plated and quenched | ||||
| Main power | 18.5 KW | ||||
| Pump power | 7.5KW | ||||
| Cutter material | high grade GR12 | ||||
| row station | 20station | ||||
| Material thickness | 1.5-3mm | ||||
| Speed | 10 ~ 15 meters per minute | ||||
| Warranty | 2year | ||||
The high-speed guardrail plate forming machine of Liming Company adopts Siemens motor and reducer to prevent the transmission, so that the high-speed guardrail plate forming machine of Liming Company has sufficient power to meet the raw materials of different thicknesses. At the same time, it also improves the forming speed of high-speed guardrail plate profiles. Can help you improve output efficiency and output
The 50L air-cooled hydraulic pump station of Liming Company's high-speed guardrail plate forming machine enables the hydraulic oil to be sufficiently cooled when the shear is used for a long time. At the same time, we use corrosion-resistant steel filter cores in the 50L air-cooled hydraulic pump station. So as to ensure the full filtration of the hydraulic oil, thus ensuring the long-term use of the shearing system, which can help you save the cost and time of replacing the shearing hydraulic cylinder.
