| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 10.30 2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 1.0 Years | Weight: | 12T |
|---|---|---|---|
| Voltage: | 380V.50HZ.3Phase | Tickness Of Coil: | 2mm-4mm |
| Use: | Highway Guardrail Steel Sheet | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Structure: | 400H Beam | Roduction Capacity: | 10-15M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | Place Of Origin:: | Hebei, China |
| Highlight: | gearbox drive guardrail machine,guardrail rollformers machine,q235 guardrail machine |
||

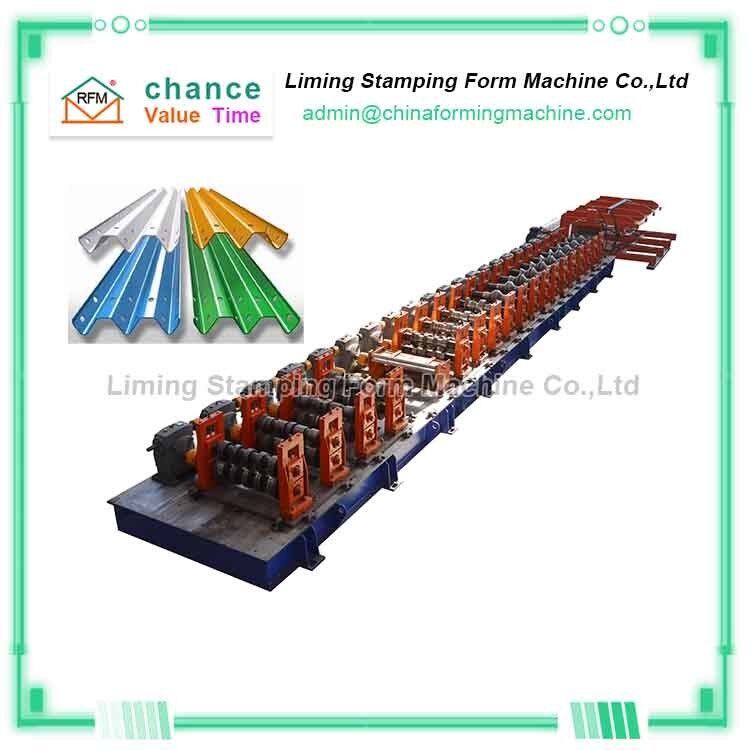

Good maintenance, good sales, highway guardrail forming machine
What is a highway guardrail forming machine?
Highway guardrail forming machine is equipment used to produce high-speed guardrail panels
The composition of the highway guardrail forming machine:
Uncoiler-Punch-Straightening Feeding-Forming Host-Hydraulic Shearing-Rewinding Frame (Automatic Palletizer)
technical parameter of Good maintenance, good sales, highway guardrail forming machine
| Rolled material | 2-4mm thickness, General Steel such as Q235 |
| Effective width | 350mm |
| Feeding width | 488mm |
| Forming steps | 16 stations |
| Roller | GCR15, quenched treated HRC58-62°C |
| Diameter of shaft | 100mm |
| Main motor power | 37 kw |
| Pump power | 15 kw |
| Drive type | by chains Or by Gearbox(worm driving) |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
| Delivery time | 75 Working days |
Customized requirements of highway guardrail forming machine:
As long as you provide the drawings, we can design and process the road guardrail forming machine accessories such as roll kun, middle plate, uncoiling, and splicing according to your drawings. After the processing is completed, the engineer will assemble the accessories into the road guardrail forming machine and then debug it. Until the accuracy reaches the size of your drawing.
The high-speed guardrail board market produced by the highway guardrail forming machine?
The high-speed guardrail profile produced by the highway guardrail forming machine is accurate in size, corrosion-resistant, impact-resistant, and easy to install. It is often used for highway protection and isolation. As there are more and more cars in various countries, the speed of highway damage is also Faster and faster, so the demand for highway guardrails is also increasing.
After-sales problems of highway guardrail forming machine.
We will provide you with a detailed operation video and a list of accessories. At the same time, we will also open a 24-hour customer for you. If the highway guardrail forming machine needs repair, we can provide a professional engineer on-site repair.
