| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 10.30 1 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 1.5 Years | Weight: | 10T |
|---|---|---|---|
| Voltage: | 380V.50HZ.3Phase | Tickness Of Coil: | 1mm-3mm |
| Use: | Highway Guardrail Steel Sheet | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Structure: | 350H Beam | Roduction Capacity: | 10-15M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | Place Of Origin:: | Hebei, China |
| Highlight: | 1mm highway guardrail roll forming machine,expressway highway guardrail roll forming machine,expressway guardrail rollformers machine |
||

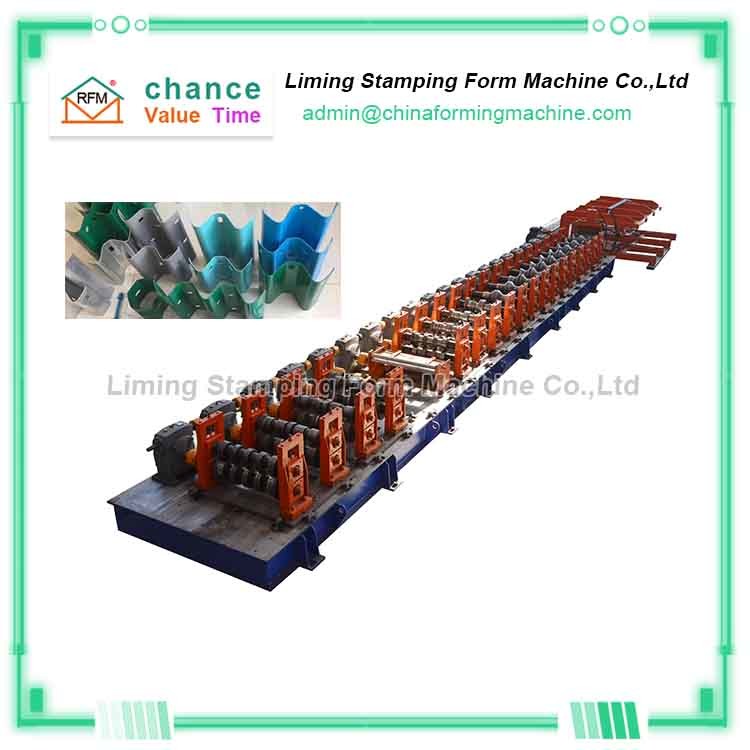

Automatic material collection customized expressway guardrail forming machine
Liming Press Forming Machinery Co., Ltd. is a company specializing in the production of cold-formed forming machinery. We have a professional technology, research and development, testing, sales, and after-sales team, and the highway guardrail plate produced by the highway guardrail plate forming machine developed by Liming Company The product has the advantages of uniformity, beauty, corrosion resistance and impact resistance, and has a good isolation and protection function for traffic, so it has received unanimous praise from people.
technical parameter of Automatic material collection customized expressway guardrail forming machine
| 1 | Length of the main part | about 18500*1200*1500mm |
| 2 | Weight of main part | 15T |
| 3 | Voltage | 380V/50HZ 3Phase |
| 4 | Roller fixer | guide column |
| 5 | Frame | 350H steel |
| 6 | Drive mode | case of differential |
| 7 | Material of rollers | 45#steel with tempering |
| 8 | Material of shafts | GCr12MoV |
| 9 | Diameter of shafts | φ 100mm |
| 10 | Number of rollers | 16 rollers |
| 11 | Main power | 30kw |
| 12 | Material of mould | Cr12 quenched |
| 13 | Power supply | hydraulic power |
Process flow of highway guardrail forming machine:
Uncoiling--feeding--cold forming--fixed-length cutting--automatically accept stacked products
The entire production process of the highway guardrail forming machine is controlled by computer programming and electronic control. Only by filling in the dimensions, one person can complete the entire production process, and the produced highway guardrails are accurate in size and can be directly installed and used.
Advantages of highway guardrail forming machine:
1. The highway guardrail forming machine adopts a gearbox transmission method: the highway guardrail forming machine has sufficient power
2. Hydraulic shearing device of highway guardrail forming machine: The multi-filter steel filter element adopted by Liming Press Machinery Co., Ltd. ensures that there will be no impurities in the hydraulic oil, so that the oil pressure can be kept stable, thereby greatly improving Work efficiency.
3. Automatic receiving device of highway guardrail forming machine: avoiding labor cost and realizing automatic receiving and stacking
