| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 10.30 5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 1.0 Years | Weight: | 15T |
|---|---|---|---|
| Voltage: | 380V.50HZ.3Phase | Tickness Of Coil: | 2.5mm-3.5mm |
| Control System: | PLC(imported Brand) | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Structure: | 350H Beam | Roduction Capacity: | 10-15M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | Cutting Blade: | Cr12MOV |
| Highlight: | liming highway guardrail roll forming machine,2.5mm highway guardrail roll forming machine,highway guardrail rollformers |
||

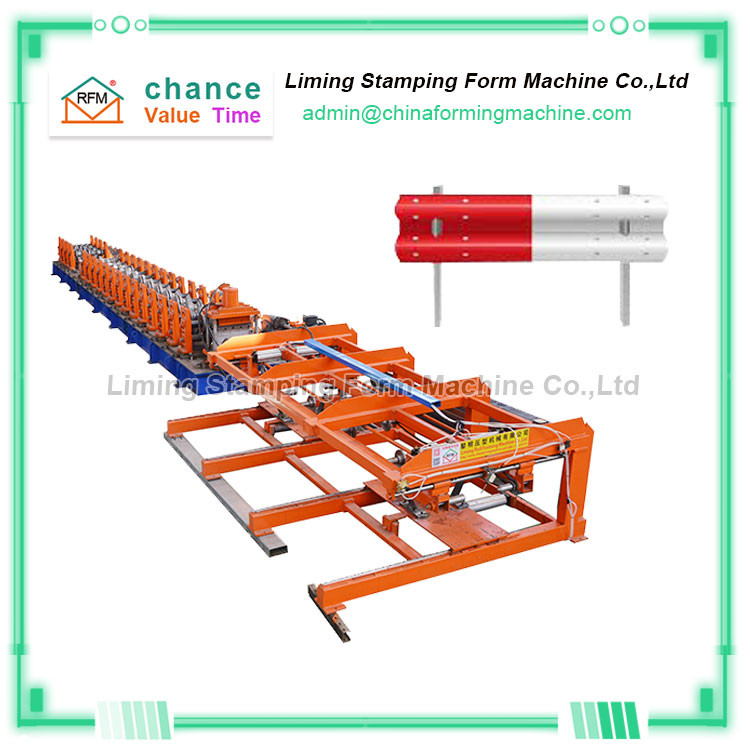

380v Automatic Metal Steel Guardrail Roll Forming Machine 50L Dual Motor Pump Station
Metal steel guardrail roll forming machine is equipment used to produce metal steel guardrail
The metal steel guardrail roll forming machine is composed of an uncoiling device, a punching device, a feeding device, a forming host, a fixed-length cutting device, and a finished product receiving device. The whole machine is controlled by a PLC electronic control system. Only one person can complete the entire production. The process can help you save a lot of labor costs.
The metal steel guardrail roll forming machine adopts a reducer transmission method, which ensures the sufficient power of the metal steel guardrail roll forming machine, so as to ensure that you can continue and efficiently produce.
technical parameter of 380v Automatic Metal Steel Guardrail Roll Forming Machine 50L Dual Motor Pump Station
|
Item:
|
|
Specification:
|
Notes:
|
|
1.Information of raw material
|
Suitable material:
|
Galvanized coil
|
|
|
Width:
|
748mm
|
|
|
|
Thickness:
|
2.5-3.5mm
|
|
|
|
Yield strength:
|
Q235A HR
|
|
|
|
2.Production specification
|
Detailed as the file
|
|
|
|
3.Power requirement:
|
Main power:
|
22kw two sets
|
With inventor
(normal standard) |
|
Cutter power:
|
15.5kw(pressure:25mpa)
3 pcs cutter |
||
|
Speed of machine:
|
10-15meters/min
|
|
|
|
4.Hydraulic de-coiler:
|
Loading:
|
5tons
|
Main power:3kw
|
|
Inner diameter
|
508mm
|
||
|
Type:
|
Automatic type
|
||
|
5.Machine specification:
|
Structure:
|
400I beam
|
Transform method : Gearbox with shaft
|
|
Roll stations:
|
20 roll stations
(with 6pcs rollers for leveling diameter:80mm) |
||
|
Splint thickness:
|
22mm
|
||
|
Diameter of shaft:
|
110mm,
|
||
|
Material of shaft:
|
Forged 45# steel
|
||
|
Type of cutting:
|
Saw cutting
|
||
|
Material of roller:
|
CR12 with heat treatment:
HRC58-62 |
||
|
Sizes of machine:
|
15.5*1.0*1.5meters
|
||
|
Material of punching mold:
|
Cr12mov
|
||
|
Sizes of chain:
|
2.0inch
|
||
The metal steel guardrail roll forming machine is equipped with an Omron encoder to accurately measure the length of the product, ensuring that the length of the product is consistent, and it also facilitates the installation of the product, which can help you quickly open the market.
The hydraulic shearing device of the metal steel guardrail roll forming machine: We use a 50L dual-motor air-cooled oil pump, which filters the hydraulic oil to the greatest extent and reduces the oil temperature at the same time, which can help you stabilize the profile Cut
The metal steel guardrail roll forming machine needs to be customized. Because the size of the metal steel guardrail in each country is inconsistent, we need to produce the metal steel guardrail roll forming machine according to your accurate size, so as to ensure the metal steel guardrail roll forming machine The metal steel guardrail produced can be quickly installed, used or sold
