| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 10.30 2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 1.0 Years | Weight: | 12T |
|---|---|---|---|
| Voltage: | 380V.50HZ.3Phase | Tickness Of Coil: | 2mm-4mm |
| Use: | Highway Guardrail Steel Sheet | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Main Motor Power: | 37 Kw | Roduction Capacity: | 10-15M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | Cutting Blade: | Cr12MOV |
| Highlight: | 4mm highway guardrail roll forming machine,siemens motor drive guard rail machine,highway guardrail roll forming machine liming |
||

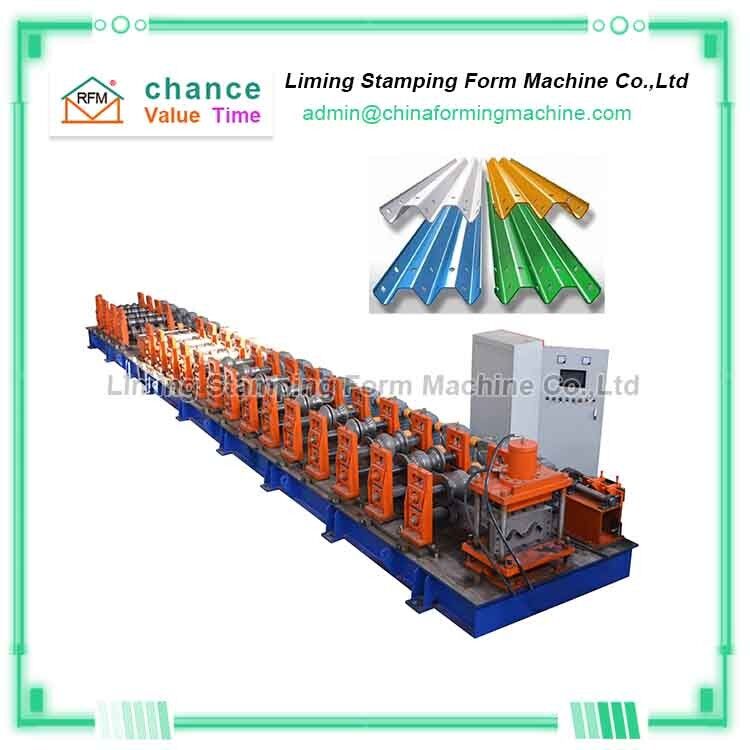

50L double motor pump station Siemens motor drive highway guardrail roll forming machine
Liming Forming Machinery Co., Ltd. has 25 years of manufacturing and design experience in producing highway guardrail roll forming machines. Liming Company has a professional technical, sales and after-sales team. We guarantee that every highway guardrail roll forming machine produced is passed through Many production tests have ensured the high precision, high efficiency and high toughness of the highway guardrail roll forming machine. At the same time, our highway guardrail roll forming machine has been exported to more than one hundred countries, and there will be corresponding ones in each country. After-sales personnel to ensure the high-efficiency production of our customers. If you need a highway guardrail roll forming machine, we can provide it for you.
technical parameter of 50L double motor pump station Siemens motor drive highway guardrail roll forming machine
| Rolled material | 2-4mm thickness, General Steel such as Q235 |
| Effective width | 350mm |
| Feeding width | 488mm |
| Forming steps | 16 stations |
| Roller | GCR15, quenched treated HRC58-62°C |
| Diameter of shaft | 100mm |
| Main motor power | 37 kw |
| Pump power | 15 kw |
| Drive type | by chains Or by Gear box(worm driving) |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
| Delivery time | 75 Working days |
Process flow of highway guardrail roll forming machine:
Manual feeding-uncoiling-punching-straightening feed-roll forming-fixed length cutting-finished product receiving
Advantages of highway guardrail roll forming machine:
1. The transmission device of the highway guardrail roll forming machine: adopts the Siemens motor to drive the reducer to ensure sufficient power for the highway guardrail roll forming machine
2. The middle plate of the highway guardrail roll forming machine: The integrated casting middle plate of Liming Company is adopted to ensure the stable operation of the highway guardrail roll forming machine.
3. Shearing device of road guardrail roll forming machine: Liming Company equipped the road guardrail roll forming machine with a 50L dual-motor air-cooled oil pump to ensure the stable temperature and pressure of the hydraulic oil, thus ensuring the stable operation of the cutting device
