| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway 10.30 2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80set/Year |
| Warranty: | 1.0 Years | Weight: | 15T |
|---|---|---|---|
| Voltage: | 380V.50HZ.3Phase | Tickness Of Coil: | 2mm-3mm |
| Use: | Highway Guardrail Steel Sheet | Type: | Highway Guardrail Crash Barrier Roll Forming Machine |
| Main Motor Power: | 50 Kw | Roduction Capacity: | 10-15M/Min |
| Material Of Roller: | Gcr12, Quench HRC58-62 Plated Chrome | Cutting Blade: | Cr12MOV |
| Highlight: | reducer drive guard rail forming machine,reducer drive guard rail machine,3mm guard rail forming machine |
||

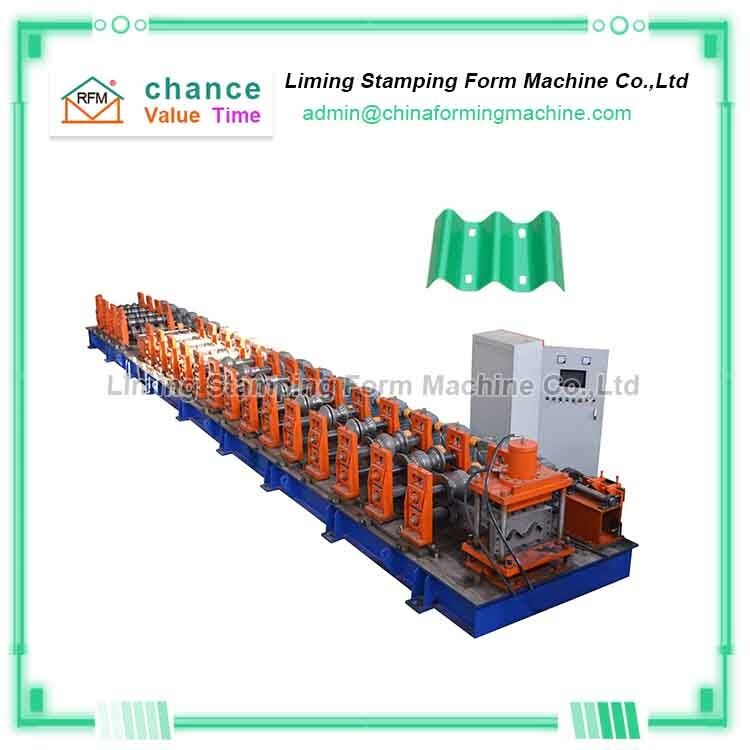

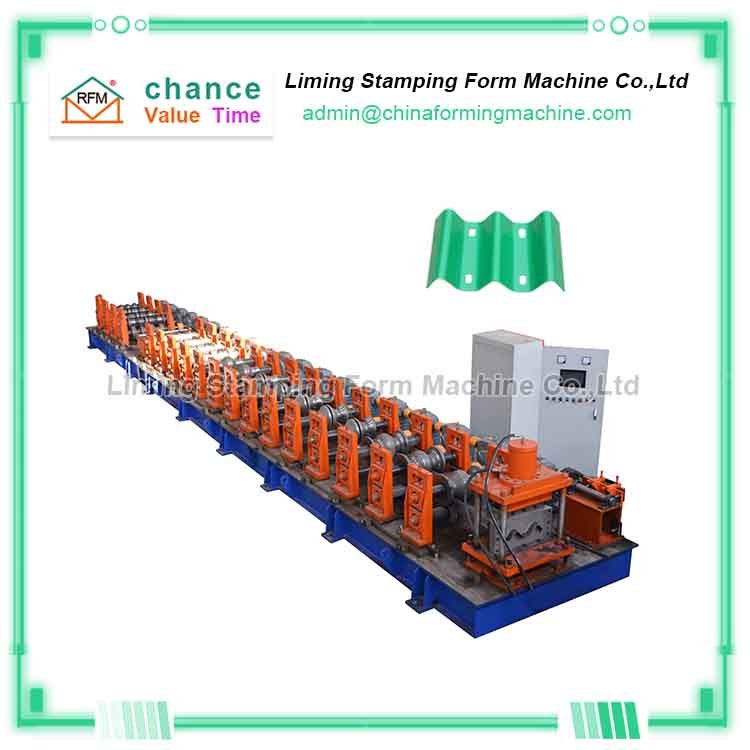

Customized 3-4mm guardrail roll forming machine reducer drive
Liming Press Forming Machinery Co., Ltd. is a technology-centric enterprise, mainly engaged in guardrail rolling forming machines, which can provide high-precision, high-tech, high-toughness, and high-quality rail rolling forming machines according to customer needs. Liming Company With 25 years of experience in forming high-speed guardrail panels, we have successfully solved the problem of automatic forming of high-speed guardrail panels for customers in more than 100 countries, and are well received by customers.
technical parameter of Customized 3-4mm guardrail roll forming machine reducer drive
| Rolled material | 2-4mm thickness, General Steel such as Q235 |
| Effective width | 350mm |
| Feeding width | 488mm |
| Forming steps | 16 stations |
| Roller | GCR15, quenched treated HRC58-62°C |
| Diameter of shaft | 100mm |
| Main motor power | 50 kw |
| Pump power | 15 kw |
| Drive type | by chains Or by Gear box(worm driving) |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
| Delivery time | 45Working days |
The composition of the guardrail roll forming machine:
Uncoiling device, punching device, feeding device, forming host, fixed-length cutting device, automatic receiving device for finished products.
Advantages of guardrail roll forming machine:
Customized production of guardrail roll forming machine: We will design a variety of schemes according to the drawings or dimensions you provide, and you will confirm the scheme before proceeding with production.
Guardrail roll forming machine transmission device: In order to ensure sufficient power of the guardrail roll forming machine, we adopt a reducer transmission method to ensure the stable operation of the guardrail roll forming machine.
The forming wheel of the guardrail roll forming machine: it is produced by the production process of rough turning, fine turning, heat treatment, etc. It has sufficient toughness and hardness
The products produced by the guardrail roll forming machine: have the characteristics of anti-corrosion, anti-aging, anti-sun, high resistance, low temperature, etc., and can be used for 10-25 years in outdoor environments
