| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway2 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Production Capacity:: | 10m/min | Tile Type:: | Steel |
|---|---|---|---|
| Power:: | 3KW-20.5KW | Material Of The Cutting Blade:: | CR12 |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 0.3-0.8mm | Weight: | 10T |
| Use:: | Fence | Material:: | EPS,Pre-printed Steel Coil,galvanized Coil,Aluminum Coil |
| Highlight: | Anti Collision Highway Guardrail Roll Forming Machine,10m/min Highway Guardrail Roll Forming Machine,10m/min guard rail roll forming machine |
||

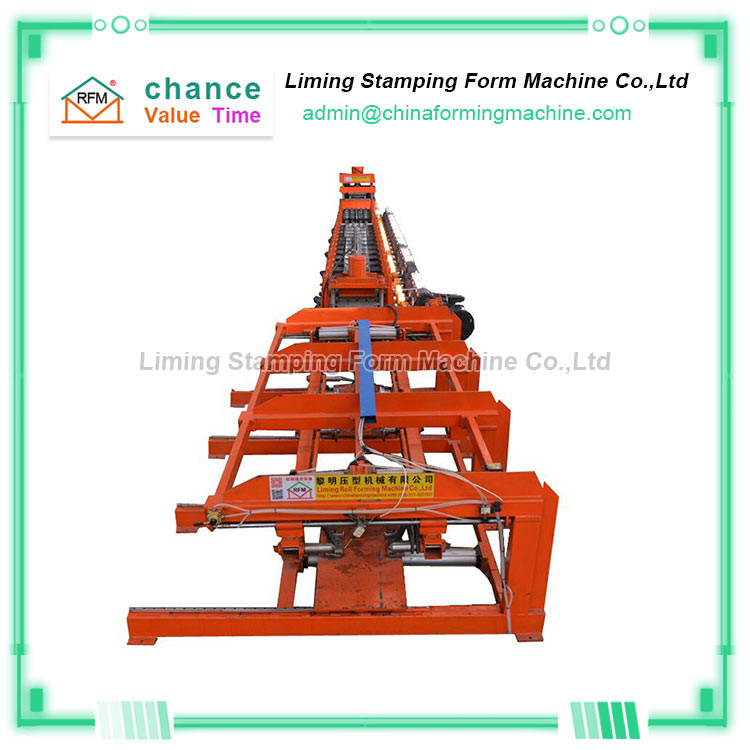

Professional Anti Collision Highway Guardrail Roll Forming Machine
"Professional anti collision highway guardrail roll forming machine" is mainly composed of decoiler, straightening machine, punching machine, punching machine, forming host, forming shearing device, hydraulic station, computer control system, finished product bracket, etc.
The products produced by the"Professional anti collision highway guardrail roll forming machine" have the characteristics of light weight, high strength, large bearing capacity and good impact resistance.
The use of the "Professional anti collision highway guardrail roll forming machine" greatly improved the management level of the expressway and reduced the occurrence of traffic accidents, which led to a joint lawsuit. The "Professional anti collision highway guardrail roll forming machine" is extremely earth-protected and unobstructed highway, achieving high-speed highway and high management level.
Technical parameters of Professional Anti Collision Highway Guardrail Roll Forming Machine
| Professional anti collision highway guardrail roll forming machine | ||
| 1 | Length of the main part | about 18500*1200*1500mm |
| 2 | Weight of main part | 15T |
| 3 | Voltage | 380V/50HZ 3Phase |
| 4 | Roller fixer | guide column |
| 5 | Frame | 400H steel |
| 6 | Drive mode | case of differential |
| 7 | Material of rollers | 45#steel with tempering |
| 8 | Material of shafts | GCr12MoV |
| 9 | Diameter of shafts | φ 100mm |
| 10 | Number of rollers | 16 rollers |
| 11 | Main power | 30kw |
| 12 | Material of mould | Cr12 quenched |
| 13 | Power supply | hydraulic power |
