| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway4 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type: | Crash Barrier Forming Equipment | Tile Type:: | Steel |
|---|---|---|---|
| Production Capacity:: | 8m/min | Power:: | 30kw |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 3-4mm | Dimension(L*W*H):: | 18.5*1.2*1.5m |
| Use:: | Fence | Material:: | EPS,Pre-printed Steel Coil,galvanized Coil,Aluminum Coil |
| Highlight: | 8m/Min Highway Guardrail Forming Machine,High Safety Highway Guardrail Forming Machine |
||

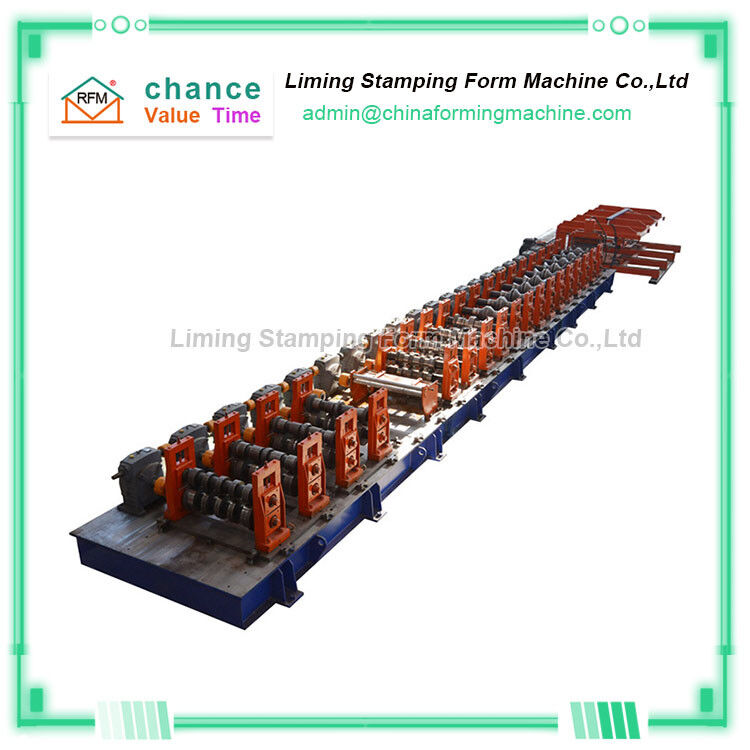

Reliable Quality Highway Guardrail Roll Forming Machine
Advantages of "Reliable quality highway guardrail roll forming machine":
It has the advantages of good impact resistance, low cost, long life, high safety, and environmental protection.
"Reliable quality highway guardrail roll forming machine" uses: highway anti-collision facilities, isolation facilities, etc.
Features of the highway guardrail board produced by the "Reliable quality highway guardrail roll forming machine":
1. Corrugated beam guardrail is the main form of semi-rigid guardrail. It is a continuous structure with corrugated steel guardrail panels spliced with each other and supported by columns.
2. Use soil foundation, column and beam deformation to absorb collision energy.
3. The corrugated beam guardrail is made of steel and is soft.
Technical parameters of Reliable Quality Highway Guardrail Roll Forming Machine
| Description | ||||
| Machine weight: | 40T | Speed: | 8-15m/min | |
| Power: | 45kw | Roller diameter: | Φ90mm | |
| Molding row: | 15 rollers | machine sizes: | 9000*2600*1700mm | |
| Roller material: | Bearing Steel | Pump power: | 30kw | |
| Material of punching die: | SKD11 | Cutter Material: | CR12MOV | |
