| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway5 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Type: | Crash Barrier Forming Equipment | Tile Type:: | Steel |
|---|---|---|---|
| Production Capacity:: | 8m/min | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 3-4mm | Dimension(L*W*H):: | 18.5*1.2*1.5m |
| Condition:: | New | Use:: | Highway Guardrail |
| Highlight: | Steel Highway Guardrail Roll Forming Machine,L4320mm Highway Guardrail Roll Forming Machine,L4320mm guardrail roll forming machine |
||

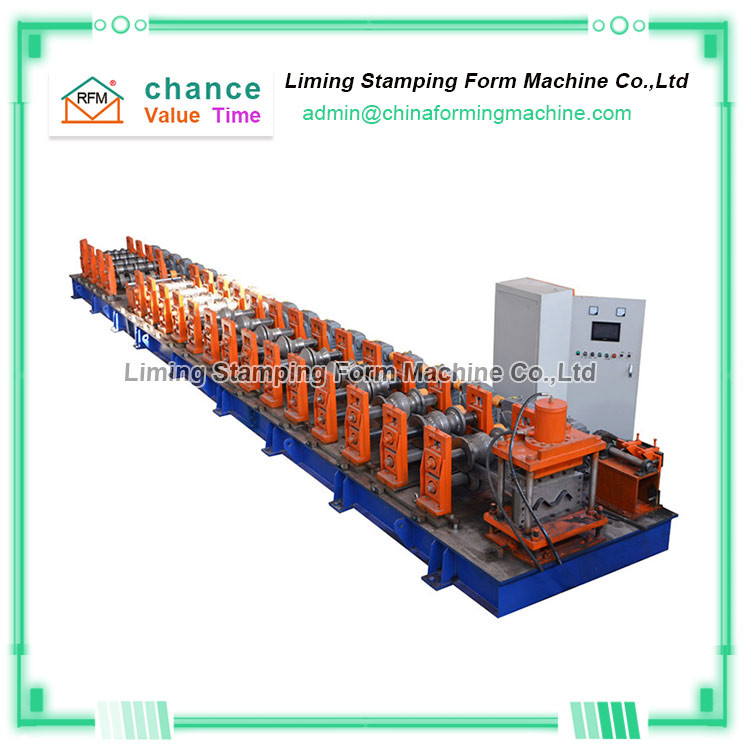

Stable Performance Highway Guardrail Roll Forming Machine
Specifications of "Stable performance highway guardrail roll forming machine"
The double-wave guardrail board produced by the "Stable performance highway guardrail roll forming machine": length 4320mm, board width 310mm, wave depth 85mm, and board thickness 3mm/4mm.
The three-wave guardrail board produced by the"Stable performance highway guardrail roll forming machine": length 4320mm, board width 506mm, wave depth 85mm, and board thickness 4mm.
The highway guardrail plate produced by the "Stable performance highway guardrail roll forming machine" is mainly used for the construction of safe and anti-collision projects such as highways, large parking lots, scenic spots, expressways, provincial highways, and rural roads.
According to the surface treatment, the road guardrail panels produced by the "Stable performance highway guardrail roll forming machine" are divided into hot-dip galvanized wave guardrail and galvanized sprayed plastic.
Technical parameters of Stable Performance Highway Guardrail Roll Forming Machine
| Decoiler | Loading capacity 5 or 10T |
| Leveling and punching | Up 5 down 6 leveling shafts,diameter 80mm. |
| punching mold material Cr12. | |
| Main machine | 15 steps forming rollers,roller material Cr15 with quenching. |
| Control box | Delta plc,frequency and Siemens for your choice. |
| Hydraulic pump | for both punching and cutting. |
| Run out table | Height adjustable |
