| Place of Origin: | China |
|---|---|
| Brand Name: | LIMING |
| Certification: | CE、ISO |
| Model Number: | LM-highway6 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude、Anti-dust film, Anti-rust cloth |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 450set/Year |
| Place Of Origin:: | China | Tile Type:: | Steel |
|---|---|---|---|
| Production Capacity:: | 8m/min | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Warranty: | 2 Years | Certification: | CE、BV、ISO |
| Rolling Thinckness:: | 3-4mm | Dimension(L*W*H):: | 6800(L)*1200(W)*1500mm(H) |
| Weight:: | 10T | Use:: | Highway Guardrail |
| Highlight: | Q345 Highway Guardrail Making Machine,LIMING Guardrail Roll Forming Equipment,Q345 Guardrail Roll Forming Equipment |
||

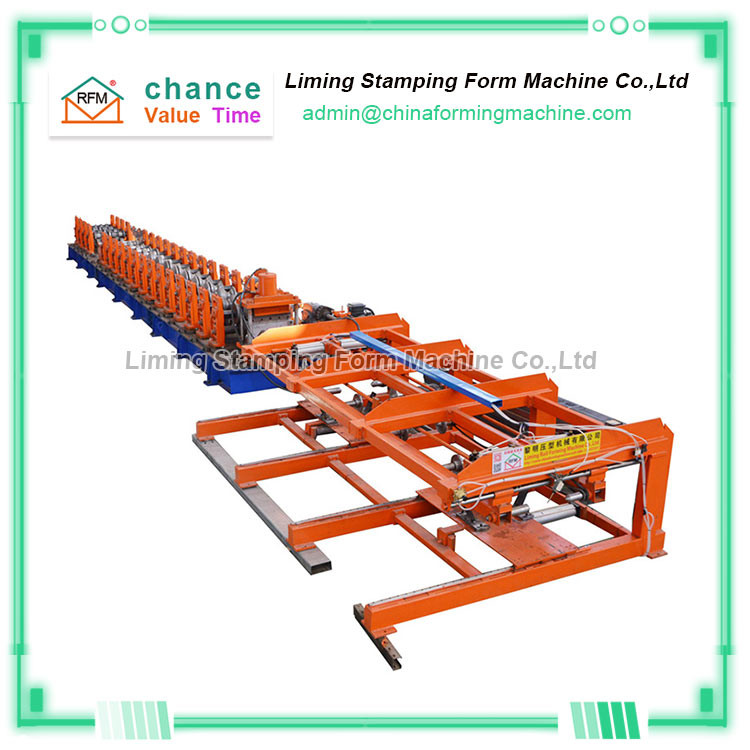

High Precision Highway Guardrail Roll Forming Machine
"High precision highway guardrail roll forming machine" is a rolling production line that can produce high-speed guardrail panels.
"High precision highway guardrail roll forming machine" is mainly composed of passive loading frame, leveling device, cutting device after forming, hydraulic station, computer control system, etc.
"High precision highway guardrail roll forming machine" has the characteristics of easy operation and so on.
The advantages of"High precision highway guardrail roll forming machine" : the guardrail board machine adopts arches to increase the robustness of the machine; adopts gearbox transmission, the machine runs more stable.
"High precision highway guardrail roll forming machine" products are used in various guardrails, highway guardrails, livestock farm guardrails, etc.
Technical parameters of High Precision Highway Guardrail Roll Forming Machine
| Normal Sizes | L:3200/3810/4000/4300/4320*W:306/310/312/380*Height:80/82/83/85*Thickness:2.75/3/4mm. |
| Available in different sizes. | |
| Materail | Q235,Q345 |
| Profile | W beam , Thrie beam |
| Surface treatment | Hot dipped galvanized or plastic sprayed coating |
| Applicabele Standards | JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway |
| Guardrail - USA), RAL RG620 (German) or any other International Standards | |
| Base Steel | Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994) |
| The Thickness of Galvanized (Double Sides) | 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request |
| Features | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc. |
| Relevant Parts | Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors |
| MOQ | one 20 feet container |
| Price Terms | FOB,CFR,CIF |
| Payment Terms | |
| T/T,L/C at sight | |
| Other special specification as per client's requirement or drawings | |
